MSI X570 ACE (X570ACE)

Home Motherboard MSI X570 ACE

Product Specification

CPU
Chipset : AMD X570
CPU Socket : AM4

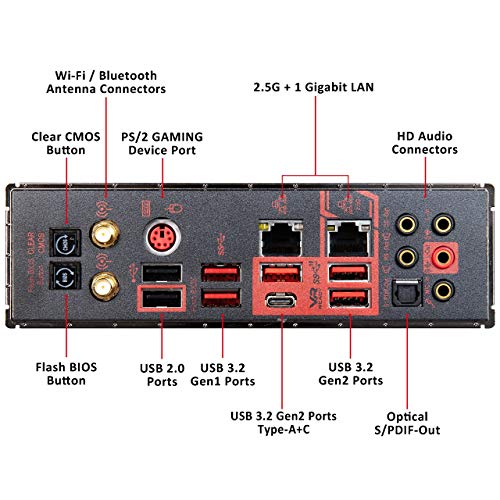

Back Panel I/O
USB
2 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
3 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
Thunderbolt : None
Display : None
Audio
5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller
1 x Intel WGI211AT Gigabit
1 x Realtek RTL8125 2.5Gigabit
PS/2 : 1 x PS/2
Wi-Fi Antenna : 2 x Connector
Buttons : BIOS Flashback, Clear CMOS
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 1866, 2133, 2400, 2666, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4100, 4266, 4400, 4533, 4600, 4733, 4800, 5000 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA : 4 x SATA III
M.2
2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)
U.2 : None
RAID Support : RAID 0, 1, 10
Internal I/O
Expansion Slots
2 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x4 mode)
2 x PCIe 4.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
Multi-GPU Support
2-Way NVIDIA SLI
3-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
5 x 4-Pin System
Liquid Cooling : 1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
2 x 8-Pin CPU
Security : Chassis Intrusion, TPM Module
LED Header : 4 x RGB
Audio : None
Diagnostics : Power, Reset
Front Panel I/O
I/O Connection Headers : AAFP
Audio
Audio Codec : Realtek ALC1220 (7.1-Channel)
Wireless
Bluetooth : 5.0
Wi-Fi : Wi-Fi 6 (802.11ax) (MU-MIMO)
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 9.6 x 12" / 243.84 x 304.80 mm
Packaging Info
Package Weight : 4.6 lb
Box Dimensions (LxWxH) : 13.9 x 10.1 x 3.6"

MSI MEG X570 ACE ATX Motherboard AMD AM4 Socket, PCIe 4.0, DDR4 Memory, Triple M.2, SATA 6Gb/s, USB 3.2 Gen 2, Wi-Fi 6 (AX), 2.5G LAN

  (792 Total Review)
 Hot Selling

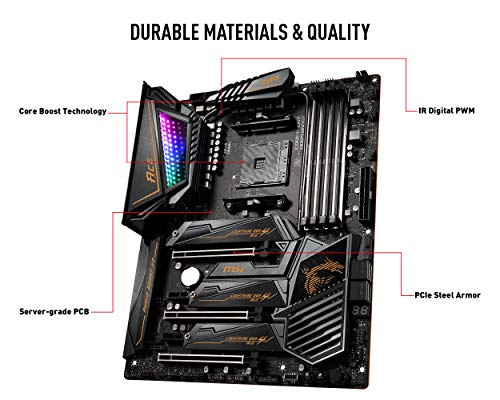

The MSI MEG X570 ACE is a high-end ATX motherboard crafted for elite gamers, overclockers, and PC enthusiasts. This board supports AMD Ryzen 2000, 3000, 4000 G-Series, and 5000 series processors for ultimate performance and upgradability. This wide CPU compatibility allows users to build or upgrade whenever they want.

The MSI MEG X570 ACE features a standard ATX form factor, offering balanced space for high-end components. Also, with 4 DDR4 DIMM slots, the motherboard supports up to 128GB of dual-channel memory. It allows overclocking beyond 5000 MHz, providing ultra-fast performance for gaming and computing.

Product Features

  • Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics Desktop Processors for AM4 socket.

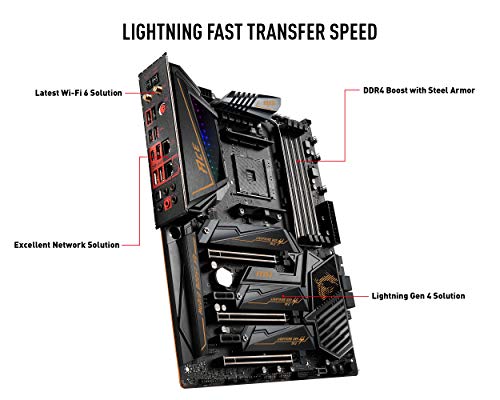

  • Triple Lightning Gen 4 M.2 slots capable of unidirectional transfer speeds up to 64 GB/s.
  • Audio Boost HD technology with isolated circuitry.
  • 4 DIMM.
  • ATX form factor.
