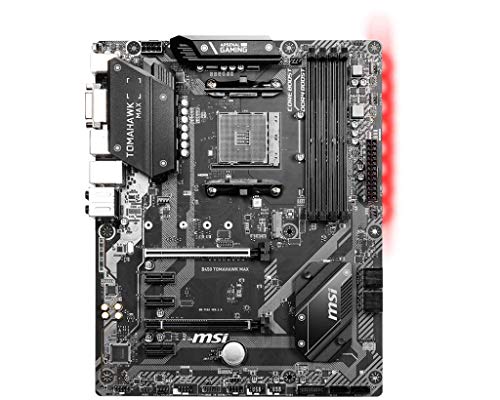

MSI B450TOMAMAX (B450 TOMAHAWK MAX)

Home Motherboard MSI B450TOMAMAX

Product Specification

CPU
Chipset : AMD B450
CPU Socket : AM4

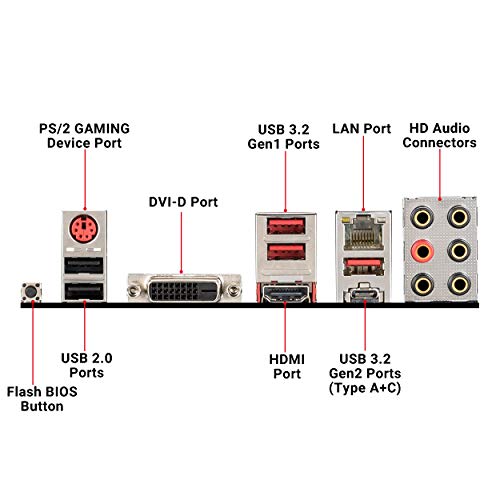

Back Panel I/O
USB
2 x USB 2.0 Type-A
2 x USB 3.1 / USB 3.2 Gen 1 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
Display
1 x DVI-D
1 x HDMI 1.4
Audio : 6 x 3.5 mm
Ethernet / Controller : 1 x Realtek 8111H Gigabit
PS/2 : 1 x Combo
Buttons : BIOS Flashback
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2667, 2800, 2933, 3000, 3066, 3200, 3466, 4000, 4133 MHz
Maximum Capacity : 64 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2 : 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
U.2 : None
RAID Support : RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16
1 x PCIe 2.0 x16 (x4 mode)
3 x PCIe 2.0 x1
USB
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
Multi-GPU Support : 2-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
4 x 4-Pin System
Liquid Cooling : 1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin CPU
Security : Chassis Intrusion, TPM Module
LED Header : 2 x RGB
Audio : None
Diagnostics : Clear CMOS
Legacy : 1 x Serial
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC892 (7.1-Channel)
Software
Supported Operating Systems
Windows 10 (64-Bit)
Windows 7 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12 x 9.6" / 304.80 x 243.84 mm
Packaging Info
Package Weight : 3.09 lb
Box Dimensions (LxWxH) : 13.7 x 10.6 x 2.7"

MSI Arsenal Gaming AMD Socket AM4 Crossfire ATX Motherboard with M.2, USB 3, DDR4, and HDMI Slots

  (7819 Total Review)
 Hot Selling

The MSI Arsenal Gaming AMD Socket AM4 Crossfire ATX Motherboard is designed for gamers and PC builders who demand reliable performance. The motherboard features AMD's AM4 socket, compatible with Ryzen 1000 to 5000 series processors. This wide compatibility ensures that you can upgrade your system without getting rid of the motherboard.

Additionally, this motherboard comes with the standard ATX size, giving you ample room for expansion and connectivity. The larger form factor allows for more PCIe slots, additional RAM support, and enhanced cooling options. This motherboard comes equipped with 4 DDR4 DIMM slots. This motherboard supports up to 64GB of system memory, which is enough to provide a smooth and efficient multitasking.

Product Features

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon graphics/ Athlon with Radeon Vega Graphics desktop processors for socket AM4.
  • Supports ddr4 memory, up to 4133(OC) MHz.
  • Overclocking capability.
  • Lightning fast game experience: 1x turbo M.2, amd turbo USB 3.2 gen2, store mi technology.
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
Out of Stock
Add Product to List View on Amazon

Product Specification

CPU
Chipset : AMD B450
CPU Socket : AM4
Back Panel I/O
USB
2 x USB 2.0 Type-A
2 x USB 3.1 / USB 3.2 Gen 1 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
Display
1 x DVI-D
1 x HDMI 1.4
Audio : 6 x 3.5 mm
Ethernet / Controller : 1 x Realtek 8111H Gigabit
PS/2 : 1 x Combo
Buttons : BIOS Flashback
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2667, 2800, 2933, 3000, 3066, 3200, 3466, 4000, 4133 MHz
Maximum Capacity : 64 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2 : 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
U.2 : None
RAID Support : RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16
1 x PCIe 2.0 x16 (x4 mode)
3 x PCIe 2.0 x1
USB
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
Multi-GPU Support : 2-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
4 x 4-Pin System
Liquid Cooling : 1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin CPU
Security : Chassis Intrusion, TPM Module
LED Header : 2 x RGB
Audio : None
Diagnostics : Clear CMOS
Legacy : 1 x Serial
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC892 (7.1-Channel)
Software
Supported Operating Systems
Windows 10 (64-Bit)
Windows 7 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12 x 9.6" / 304.80 x 243.84 mm
Packaging Info
Package Weight : 3.09 lb
Box Dimensions (LxWxH) : 13.7 x 10.6 x 2.7"
