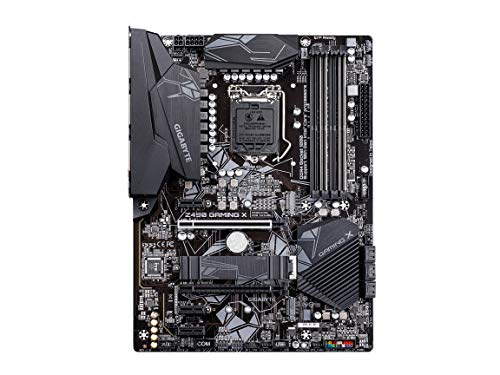

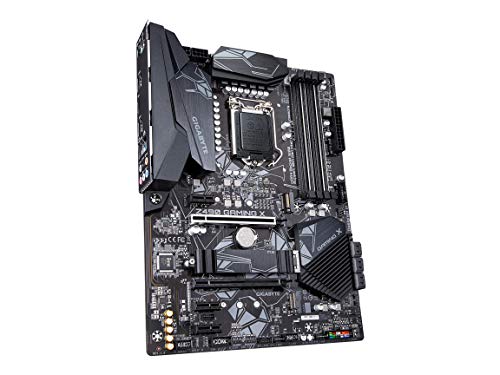

Gigabyte Z490 GAMING X

Home Motherboard Gigabyte Z490 GAMING X

Product Specification

CPU
Chipset : Intel Z490
CPU Socket : LGA 1200
Back Panel I/O
USB
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
5 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt : None
Display : 1 x HDMI 1.4
Audio : 6 x 3.5 mm
Ethernet / Controller : 1 x Intel Gigabit
PS/2 : 1 x PS/2
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified))
U.2 : None
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16
1 x PCIe 3.0 x4
3 x PCIe 3.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support : 2-Way, Quad-GPU AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
4 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 4-Pin ATX
1 x 8-Pin ATX
Security : TPM Module
LED Header : 4 x RGB
Audio
1 x Speaker
1 x S/PDIF
Diagnostics : Clear CMOS, Flash BIOS
Add-On : 2 x Thunderbolt Card Header
Legacy : 1 x Serial
BIOS
ROM : 256 Mb
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC1200 (7.1-Channel)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12.01 x 9.06" / 30.5 x 23 cm
Packaging Info
Package Weight : 3.29 lb
Box Dimensions (LxWxH) : 13.3 x 10.8 x 3.2"

GIGABYTE Z490 Gaming X ATX Motherboard Intel LGA 1200 Socket, Z490 Chipset, Dual M.2 Slots, DDR4 Support, Realtek ALC892 Audio, Intel Gigabit LAN, SATA 6Gb/s, USB 3.2 Gen 2, HDMI Output

  (89 Total Review)
 Hot Selling

The GIGABYTE Z490 Gaming X is a powerful and reliable motherboard designed for gamers and PC builders who want excellent performance and great features. The motherboard supports Intel’s 10th-generation Core processors, including i9, i7, i5, and i3 models.

The USB 3.2 Gen 2 ports provide blazing-fast transfer speeds for external devices like flash drives and external SSDs. Also, the HDMI port on the motherboard allows you to connect your PC directly to monitors and TVs with high-definition video and audio. Whether you’re a casual gamer or a serious competitor, this motherboard helps you get the most out of your system.

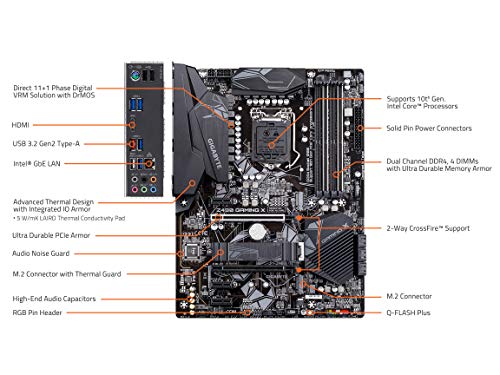

Product Features

  • Supports 10th Gen Intel Core processors.
  • Direct 11+1 Phase Digital VRMs with DrMOS Stages.
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.
  • Intel GbE LAN.
  • 2x M.2 slots, 1x Thermal Guard.
  • RGB Fusion 2.0.
