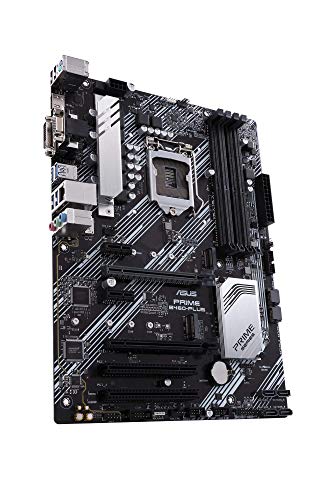

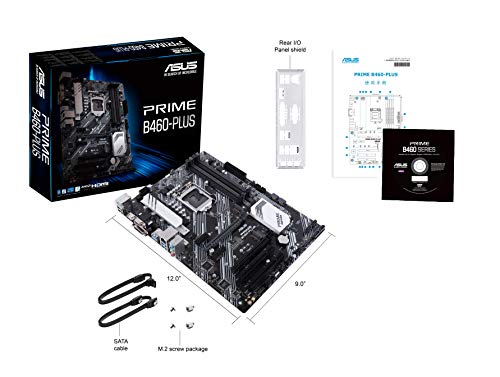

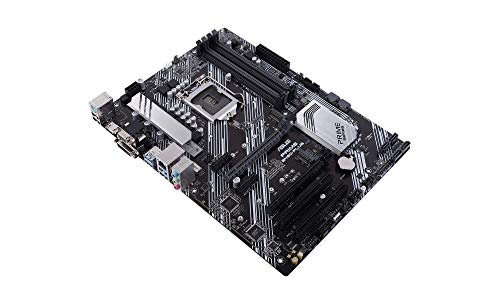

ASUS PRIME B460-PLUS (90MB12J0-M0AAY0)

Home Motherboard ASUS PRIME B460-PLUS

Product Specification

CPU
Chipset : Intel B460
CPU Socket : LGA 1200
Back Panel I/O
USB
4 x USB 3.1 / USB 3.2 Gen 2 Type-A
2 x USB 2.0 Type-A
Display
1 x HDMI
1 x DVI-D
1 x VGA
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Gigabit
PS/2 : 1 x Combo
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2800, 2933 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2242, 2260, 2280 (PCIe (Unspecified), SATA (Unspecified))
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10
Internal I/O
Expansion Slots
2 x PCIe 3.0 x16
2 x PCI
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support : 2-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
3 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
LED Header : 2 x RGB
Audio : 1 x S/PDIF
Diagnostics : Clear CMOS
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC887 (7.1-Channel)
Physical
Form Factor : ATX
Dimensions : 12 x 9" / 30.48 x 22.86 cm
Packaging Info
Package Weight : 2.39 lb
Box Dimensions (LxWxH) : 13.1 x 10.5 x 2.1"

ASUS Prime B460-PLUS LGA 1200 (Intel 10th Gen) ATX Motherboard (Dual M.2, 1Gb LAN, USB 3.2 Gen 1 Ports, HDMI, DisplayPort and Aura Sync RGB)

  (167 Total Review)
 Hot Selling

Product Features

  • Intel LGA 1200 Socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2 utility
  • Boosted Memory Performance: ASUS OptiMem proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.
  • 5X Protection III: all-round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless-steel back I/O
  • Enhanced Power Solution: 8 DrMOS power stages, ProCool connector, alloy chokes and durable capacitors for stable power delivery in the most demanding situations
  • Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear with RGB headers
