Product Specification

CPU
Chipset : AMD X370
CPU Socket : AM4

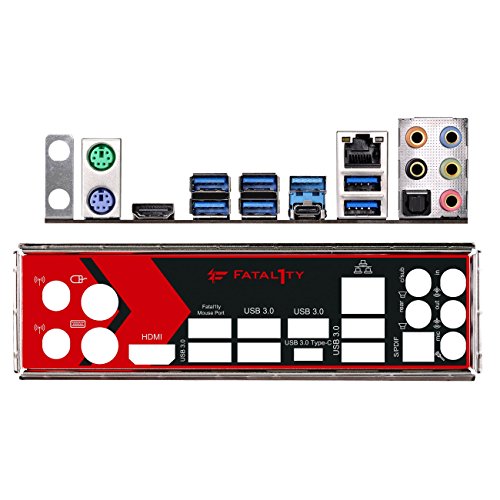

Back Panel I/O
USB
7 x USB 3.1 / USB 3.2 Gen 1 Type-A
1 x USB 3.1 / USB 3.2 Gen 1 Type-C
Thunderbolt : None
Display : 1 x HDMI
Audio
1 x S/PDIF
5 x 3.5 mm
Ethernet / Controller : 1 x Intel I211AT Gigabit
PS/2 : 2 x PS/2
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2667, 2933, 3200 MHz
Maximum Capacity : 64 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2230, 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2230, 2242, 2260, 2280 (PCIe 2.0 x2, SATA III)
U.2 : None
RAID Support : RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots
2 x PCIe 3.0 x16
4 x PCIe 2.0 x1
USB
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support
Quad-GPU AMD CrossFireX
Quad-GPU NVIDIA SLI
Air Cooling
2 x 4-Pin CPU
3 x 4-Pin System
Liquid Cooling
1 x 4-Pin Pump
1 x Radiator Fan
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security : TPM Module
LED Header : 2 x RGB
Audio : 1 x Speaker
Diagnostics : 2-Digit Debug LED
Legacy : 1 x Serial
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC1220 (7.1-Channel)
Wireless
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 9.61 x 12.01" / 24.4 x 30.5 cm

ASRock X370 Gaming X Fatal1ty AM4 AMD Promontory X370 SATA 6Gb/s USB 3.0 HDMI ATX AMD Motherboard

  (46 Total Review)
 Hot Selling

Product Features

  • Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen CPUs (Summit Ridge)
  • Supports DDR4 3200+(OC) (Ryzen CPU)/2400 (A-series APU)
  • Slots: 2x PCI-Express 3.0 x16 Slots, 4x PCI-Express 2.0 x1 Slot
  • SATA: 6x SATA3 Ports
  • SATA: 10x SATA3 Ports
$249.99

Product Specification

CPU
Chipset : AMD X370
CPU Socket : AM4
Back Panel I/O
USB
7 x USB 3.1 / USB 3.2 Gen 1 Type-A
1 x USB 3.1 / USB 3.2 Gen 1 Type-C
Thunderbolt : None
Display : 1 x HDMI
Audio
1 x S/PDIF
5 x 3.5 mm
Ethernet / Controller : 1 x Intel I211AT Gigabit
PS/2 : 2 x PS/2
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2667, 2933, 3200 MHz
Maximum Capacity : 64 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2230, 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
1 x M Key 2230, 2242, 2260, 2280 (PCIe 2.0 x2, SATA III)
U.2 : None
RAID Support : RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots
2 x PCIe 3.0 x16
4 x PCIe 2.0 x1
USB
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support
Quad-GPU AMD CrossFireX
Quad-GPU NVIDIA SLI
Air Cooling
2 x 4-Pin CPU
3 x 4-Pin System
Liquid Cooling
1 x 4-Pin Pump
1 x Radiator Fan
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security : TPM Module
LED Header : 2 x RGB
Audio : 1 x Speaker
Diagnostics : 2-Digit Debug LED
Legacy : 1 x Serial
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC1220 (7.1-Channel)
Wireless
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 9.61 x 12.01" / 24.4 x 30.5 cm
