CyberPower PR5000 (PR5000LCDRTXL5U)

Home Ups CyberPower PR5000

Product Specification

General
UPS Topology : Line-interactive
Energy Saving : GreenPower UPS bypass technology
Input
Voltage : 208 to 240 VAC
Input Frequency : 50Hz/60 Hz ± 3 Hz
Voltage Range
Input: 148 to 254 VAC
Adjustable: 131 to 268 VAC
Plug Type : NEMA L6-30P
Cold Start : Yes
Plug Style : Straight
Cord Length : 10' / 3 m
Output
VA : 5000
Watts : 4000
Automatic Voltage Regulation (AVR) : Yes
On Battery Voltage : 208 VAC ± 5%
On Battery Frequency : 60Hz ± 0.1%
On Battery Waveform : Sine wave
Outlets
Total: 5
Battery & Surge Protected: 3
Critical Load: 2

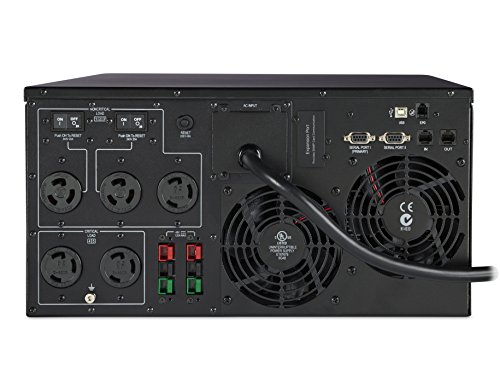

Outlet Type : 3 x NEMA L6-30R, 2 x NEMA L6-20R
Overload Protection
On Utility: Circuit breaker
On Battery: Internal current limiting
Transfer time : 4 ms
Battery
Runtime
32 minutes at half load
13 minutes at full load
Battery Type : Sealed lead-acid
Battery Size : 12 V / 9 Ah
Hot Swappable : Yes
Replacement Battery : RB1290X16
User Replaceable : Yes
Battery Quantity : 16
Typical Recharge Time : 8 hours
External Battery Compatibility : Optional BPL48V75ART2U
Surge Protection / Filtering
Surge Suppression : 2430 joules
Phone RJ11 / Ethernet RJ45 : 1-In, 1-Out (combo)
Management and Communications
LCD

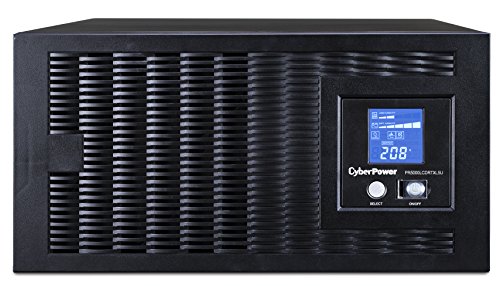

Multifunction LCD Panel
Displays: Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode
HID Compliant USB Port : Yes
Serial Port : Yes (2x)
EPO Port : Yes
Dry Contact Switch : Yes
LED Indicators : Power On
Alarms : Audible: On Battery, Low Battery, Overload
Management Features : On-Device Management Features: Self-Test, Auto-Charge, Auto-Restart
Software : PowerPanel Business edition
SNMP/HTTP Remote Monitoring : Yes, with optional RMCARD202, RMCARD203 or RMCARD205
Environmental
Operating Temperature : 32 to 104°F / 0 to 40°C
Operating Relative Humidity : 0 to 95% non-condensing
Storage Temperature : 5 to 113°F / -15 to 45°C
Maximum Operating Elevation : 10,000' (0 to 3000 m)
Maximum Storage Elevation : 50,000' / 0 to 15,000 m
Certifications
Safety
FCC Class A certified, UL 1778
CSA C22.2 No. 107.3-05
Environmental : RoHS compliant
Physical
Rack Size : 5 RU
Form Factor : Rack
Dimensions (W x H x D) : 17 x 8.75 x 24.25" / 431.8 x 222.25 x 615.95 mm
Weight : 222 lb / 100.69 kg
Packaging Info
Package Weight : 283 lb
Box Dimensions (LxWxH) : 35 x 24 x 14"

CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS System, 5000VA/4000W, 5 Outlets, AVR, 5U Rack/Tower,Black

  (5 Total Review)
 Hot Selling

Product Features

  • 5000VA / 4000W Pure Sine Wave UPS - Pure Sine Wave UPS - designed to support Active PFC power supplies and conventional power supplies
  • Line-Interactive Topology. Full AVR Buck/Boost & GreenPower UPS, Energy Star Certified
  • 5U Rack Mount/Tower convertible. Multi-function rotatable LCD display
  • (3) NEMA L6-30R & (2) NEMA L6-20R Output Receptacles. Input Plug Type 30A: NEMA L6-30P - Optional SNMP/HTTP remote management (RMCARD205)
  • Add up to ten (10) BPL48V45ART2U external battery packs to increase the runtime. Can be used with step down transformer OL6KRT2UTF
  • 5000VA/4000 Watts - GreenPower UPS
  • Pure Sinewave, Line-Interactive, AVR
  • Intelligent LCD Diagnostics
  • SNMP/HTTP, 5U Rack/Tower, 5 Outlets
  • Extended runtime capable with optional BPL48V75ART2U Battery Packs
$1,995.95

Product Specification

General
UPS Topology : Line-interactive
Energy Saving : GreenPower UPS bypass technology
Input
Voltage : 208 to 240 VAC
Input Frequency : 50Hz/60 Hz ± 3 Hz
Voltage Range
Input: 148 to 254 VAC
Adjustable: 131 to 268 VAC
Plug Type : NEMA L6-30P
Cold Start : Yes
Plug Style : Straight
Cord Length : 10' / 3 m
Output
VA : 5000
Watts : 4000
Automatic Voltage Regulation (AVR) : Yes
On Battery Voltage : 208 VAC ± 5%
On Battery Frequency : 60Hz ± 0.1%
On Battery Waveform : Sine wave
Outlets
Total: 5
Battery & Surge Protected: 3
Critical Load: 2
Outlet Type : 3 x NEMA L6-30R, 2 x NEMA L6-20R
Overload Protection
On Utility: Circuit breaker
On Battery: Internal current limiting
Transfer time : 4 ms
Battery
Runtime
32 minutes at half load
13 minutes at full load
Battery Type : Sealed lead-acid
Battery Size : 12 V / 9 Ah
Hot Swappable : Yes
Replacement Battery : RB1290X16
User Replaceable : Yes
Battery Quantity : 16
Typical Recharge Time : 8 hours
External Battery Compatibility : Optional BPL48V75ART2U
Surge Protection / Filtering
Surge Suppression : 2430 joules
Phone RJ11 / Ethernet RJ45 : 1-In, 1-Out (combo)
Management and Communications
LCD
Multifunction LCD Panel
Displays: Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode
HID Compliant USB Port : Yes
Serial Port : Yes (2x)
EPO Port : Yes
Dry Contact Switch : Yes
LED Indicators : Power On
Alarms : Audible: On Battery, Low Battery, Overload
Management Features : On-Device Management Features: Self-Test, Auto-Charge, Auto-Restart
Software : PowerPanel Business edition
SNMP/HTTP Remote Monitoring : Yes, with optional RMCARD202, RMCARD203 or RMCARD205
Environmental
Operating Temperature : 32 to 104°F / 0 to 40°C
Operating Relative Humidity : 0 to 95% non-condensing
Storage Temperature : 5 to 113°F / -15 to 45°C
Maximum Operating Elevation : 10,000' (0 to 3000 m)
Maximum Storage Elevation : 50,000' / 0 to 15,000 m
Certifications
Safety
FCC Class A certified, UL 1778
CSA C22.2 No. 107.3-05
Environmental : RoHS compliant
Physical
Rack Size : 5 RU
Form Factor : Rack
Dimensions (W x H x D) : 17 x 8.75 x 24.25" / 431.8 x 222.25 x 615.95 mm
Weight : 222 lb / 100.69 kg
Packaging Info
Package Weight : 283 lb
Box Dimensions (LxWxH) : 35 x 24 x 14"
