CyberPower OR500 (OR500LCDRM1U)

Home Ups CyberPower OR500

Product Specification

General
Total Outlets : 6
Protected Outlets
4 (Battery and Surge)
2 (Surge Only)
Plug Type : NEMA 5-15P
Data Line Protection : RJ11, RJ45
Communications
Serial via DE-9/DB-9
USB via Type-B
Topology : Line Interactive
Transfer Time : 4 ms
Power
Surge Energy Rating : 1030 Joules
Maximum Wattage : 300 W
Input Voltage Adjustable Range : 90 to 140 VAC
Input Frequency : 60 Hz ± 3 Hz
Nominal Output Voltage : 120 VAC
Output Frequency : 60 Hz ± 1%
Load Capacity : 500 VA
Waveform : Simulated Sine Wave
Battery
Cells : 2
Battery Capacity : 84 VAh
Chemistry : Lead-Acid
Full-Load Runtime : 3 Minutes
Half-Load Runtime : 12 Minutes
Charging Time : 8 Hours
User Replaceable : Yes
Replacement Battery : RB0670X2
Environmental
Operating Temperature : 32 to 95°F / 0 to 35°C
Operating Humidity : 0 to 95%
Certifications : RoHS, as per Manufacturer
Physical
Cable Length : 10' / 3 m
Rackmount Size : 1 RU (with Included Hardware)
Dimensions (W x H x D) : 17.3 x 1.8 x 9.3" / 439.4 x 45.7 x 236.2 mm
Weight : 18.2 lb / 8.2 kg
Packaging Info
Package Weight : 18.9 lb
Box Dimensions (LxWxH) : 21 x 14 x 5.6"

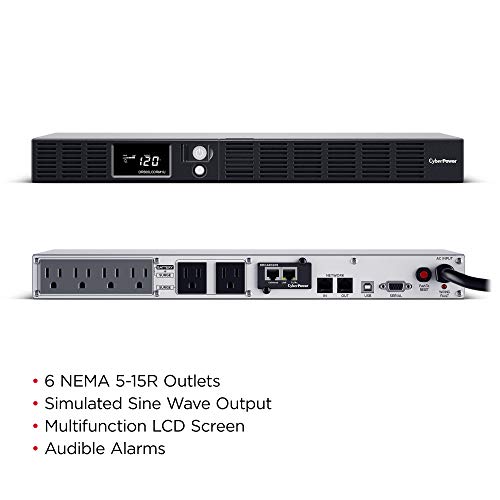

CyberPower OR500LCDRM1U Smart App LCD UPS System, 500VA/300W, 6 Outlets, AVR, 1U Rackmount

  (595 Total Review)
 Hot Selling

Product Features

  • 500VA/300W smart app LCD Uninterruptible power supply (ups) system: uses simulated sine wave output to protect department and workgroup servers, network devices, and telecom installations without active PFC power supplies.
  • 6 NEMA 5-15R outlets: (4) battery backup and surge protected outlets, (2) surge protected outlets. Input: 15a, NEMA 5-15P with 10 foot power cord
  • Multifunction LCD screen – Provides runtime in minutes, battery status, power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. Remote management: Requires optional Rmcard205 management card.
  • Automatic Voltage Regulation (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery.
  • 3 year – Including batteries connected equipment, free PowerPanel business edition management software (download)
