CyberPower OR2200PFCRT2U

Home Ups CyberPower OR2200PFCRT2U

Product Specification

General

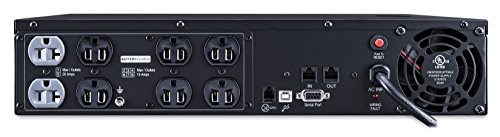

Total Outlets
6 x NEMA 5-15R
2 x NEMA 5-20R
Protected Outlets
6 x NEMA 5-15R (Battery and Surge)
2 x NEMA 5-20R (Battery and Surge)
Plug Type : NEMA 5-20P Right-Angle
USB Charging Ports : None
SmartSlot Interface : None
Coax Protection : None
Data Line Protection : RJ11, RJ45
Communications
USB via Type-B
Serial via DE-9/DB-9
Emergency Power Off (EPO) Support : Yes
Topology : Line Interactive
Transfer Time : 4 ms
Power
Surge Energy Rating : 1470 Joules
Maximum Wattage : 1540 W
Nominal Input Voltage : 120 VAC
Input Voltage Range : 88 to 139 VAC
Input Voltage Adjustable Range : 86 to 142 VAC
Input Frequency : 60 Hz ± 3 Hz
Nominal Output Voltage : 120 VAC
Output Frequency : 60 Hz ± 1%
Load Capacity : 2000 VA
Thermal Dissipation : 178 BTU/Hour
Waveform : Sine Wave
Battery
Chemistry : Lead-Acid
Full-Load Runtime : 4.5 Minutes
Half-Load Runtime : 15.5 Minutes
Charging Time : 10 Hours
User Replaceable : Yes
Replacement Battery
RB1290X4H
RB1290X4C
Hot-Swap Support : Yes
Environmental
Operating Temperature : 32 to 104°F / 0 to 40°C
Operating Humidity : 0 to 90%
Storage Temperature : 5 to 113°F / -15 to 45°C
Storage Humidity : 0 to 95%
Operating Altitude : 0 to 10,000' / 0.00 to 3048 m
Storage Altitude : 0 to 50,000' / 0.00 to 15,240 m
Noise Level : 48.5 dBA
Certifications : FCC, RoHS, UL, cUL, as per Manufacturer
Physical
Cable Length : 10' / 3.05 m
Rackmount Size : 2 RU (with Included Hardware)

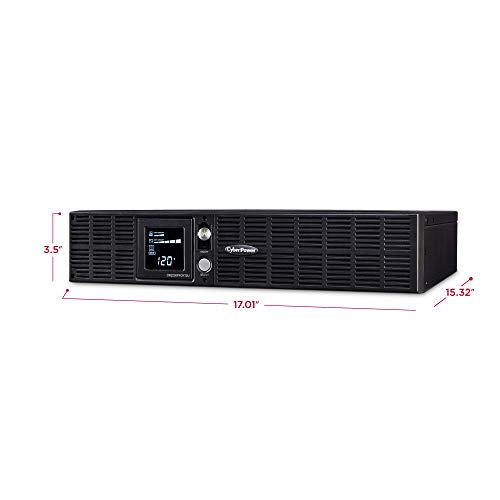

Dimensions (W x H x D) : 17 x 3.5 x 15.3" / 43.18 x 8.89 x 38.86 cm
Weight : 57.2 lb / 25.95 kg
Packaging Info
Package Weight : 61.45 lb
Box Dimensions (LxWxH) : 21.5 x 20.5 x 11.5"

CyberPower OR2200PFCRT2U PFC Sinewave UPS System, 2000VA/1540W, 8 Outlets, AVR, 2U Rack/Tower,Black

  (102 Total Review)
 Hot Selling

Product Features

  • 2000VA/1540W PFC Sinewave Battery Backup Uninterruptible Power Supply (UPS) System. Plug type and cord- NEMA 5-20P, 10 feet cord. Plug Style- Right Angle
  • 8 BATTERY BACKUP & SURGE PROTECTED OUTLETS: (2) NEMA 5-20R, (6) NEMA 5-15R outlets provide power, surge and data line protection for servers, workstations, network devices and telecom equipment requiring Active PFC power source compatibility

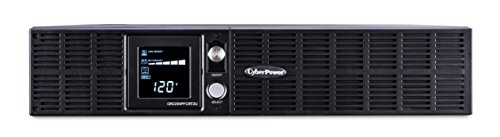

  • ROTATABLE MULTIFUNCTION LCD PANEL: Displays immediate, detailed information on the UPS’ battery and power conditions, including: estimated runtime, battery capacity, load capacity, etc
  • AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the UPS’ battery
  • 3-YEAR WARRANTY – INCLUDING BATTERIES, $300,000 Connected Equipment Guarantee, FREE PowerPanel Business Edition Management Software (Download).Input Voltage Range:88 – 139 VAC
