CyberPower OR2200LCD (OR2200LCDRTXL2U)

Home Ups CyberPower OR2200LCD

Product Specification

General
Total Outlets : 8 x NEMA 5-20R
Protected Outlets : 8 (Battery and Surge)
Plug Type : NEMA 5-20P
USB Charging Ports : None
SmartSlot Interface : None
Coax Protection
1-In
1-Out
Data Line Protection : RJ11, RJ45
Communications
Serial via DE-9/DB-9
USB via Type-B
Emergency Power Off (EPO) Support : Yes
Topology : Line Interactive
Transfer Time : 4 ms
Power
Surge Energy Rating : 2060 Joules
Maximum Wattage : 1650 W
Input Voltage Adjustable Range : 90 to 140 VAC
Input Frequency : 50/60 Hz ± 3 Hz
Nominal Output Voltage : 120 VAC
Output Frequency : 60 Hz ± 1%
Load Capacity : 2190 VA
Waveform : Simulated Sine Wave
Battery
Cells : 4
Battery Capacity : 108 VAh
Chemistry : Lead-Acid
Full-Load Runtime : 6 Minutes
Half-Load Runtime : 15 Minutes
Charging Time : 8 Hours
User Replaceable : Yes
Replacement Battery : RB1290X4B
Hot-Swap Support : Yes
Environmental
Operating Temperature : 32 to 104°F / 0 to 40°C
Operating Humidity : 0 to 90%
Certifications : RoHS, as per Manufacturer
Physical
Cable Length : 10' / 3 m
Rackmount Size : 2 RU (with Included Hardware)

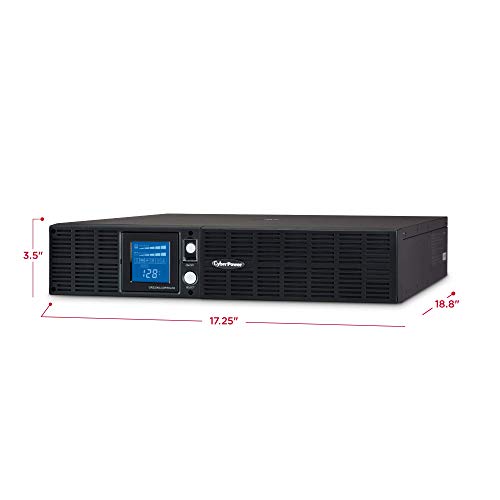

Dimensions (W x H x D) : 17 x 3.5 x 18.8" / 43.2 x 8.9 x 47.8 cm
Weight : 66.1 lb / 30 kg
Packaging Info
Package Weight : 91 lb
Box Dimensions (LxWxH) : 23.8 x 21.6 x 10.9"

CyberPower OR2200LCDRTXL2U Smart App LCD UPS System, 2190VA/1650W, 8 Outlets, AVR, 2U Rack/Tower

  (139 Total Review)
 Hot Selling

Product Features

  • 2100VA/1650W Smart App LCD Battery Backup Uninterruptible Power Supply (UPS) System; offers guaranteed power protection for departmental servers, networking hardware, and other equipment capable of using simulated sine wave output
  • 8 OUTLETS: Eight NEMA 5-20R battery back up and surge protected outelts; Safeguard department and workgroup servers, workstations, network devices, and telecom equipment; INPUT: NEMA 5-20P straight plug with 10 foot power cord
  • INCREASED RUNTIME OPTION: Add up to ten (10) BP48VP2U02 External Battery Packs to increase total runtime
  • AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery
  • 3-Year Manufacturer Warranty - Including the Batteries, $500,00 Connected Equipment Guarantee
