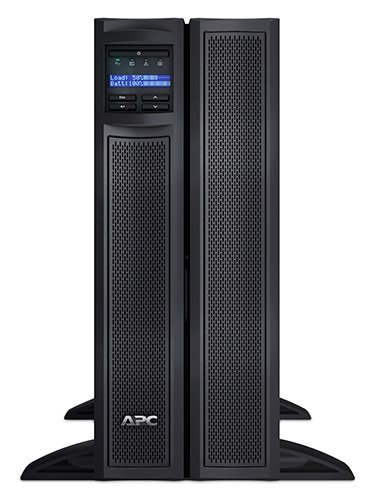

APC SMX3000 (270A789)

Home Ups APC SMX3000

Product Specification

General

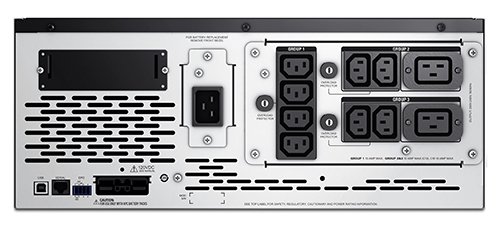

Total Outlets : 10
Protected Outlets
8 x IEC-320 C13 (Battery and Surge)
2 x IEC-320 C19 (Battery and Surge)
SmartSlot Interface : 1
Data Line Protection : RJ45
Communications
Serial via RJ45
USB via Type-B
USB via Type-A
Emergency Power Off (EPO) Support : Yes
Noise Filtering : 0.3%
Topology : Line Interactive
Transfer Time : 2 to 10 ms
Power
Surge Energy Rating : 645 Joules
Maximum Wattage : 2700 W
Input Voltage Range : 208 to 240 VAC
Input Voltage Adjustable Range : 140 to 280 VAC
Input Frequency : 50/60 Hz ± 3 Hz (Auto Sensing)
Output Voltage Range : 208 to 240 VAC
Output Frequency : 50/60 Hz ± 3 Hz
Load Capacity : 3000 VA
Thermal Dissipation : 184 BTU/Hour
Waveform : Sine Wave
Battery
Cells : 1
Chemistry : Lead-Acid
Charging Time : 3 Hours
Replacement Battery : APCRBC143
Environmental
Operating Temperature : 32 to 104°F / 0 to 40°C
Operating Humidity : 0 to 95%
Storage Temperature : 5 to 113°F / -15 to 45°C
Storage Humidity : 0 to 95%
Operating Altitude : 10,000' / 3000 m
Storage Altitude : 50,000' / 15,000 m
Noise Level : 55 dBA
Certifications : REACH, RoHS, as per Manufacturer
Physical
Cable Length : 8' / 2.4 m
Rackmount Size : 4 RU (with Included Hardware)
Dimensions (W x H x D) : 17 x 7 x 19" / 432 x 178 x 483 mm
Weight : 85.2 lb / 38.6 kg
Packaging Info
Package Weight : 107 lb
Box Dimensions (LxWxH) : 25 x 23 x 13"

APC Cables APC Smart-UPS 3000VA Tower/Rack Mountable UPS - 2.70 kWTower/Rack Mountable

  (0 Total Review)
 Hot Selling

Product Features

  • UPC: 731304292623
  • Weight: 140.000 lbs
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
$3,172
Add Product to List View on Amazon

Product Specification

General
Total Outlets : 10
Protected Outlets
8 x IEC-320 C13 (Battery and Surge)
2 x IEC-320 C19 (Battery and Surge)
SmartSlot Interface : 1
Data Line Protection : RJ45
Communications
Serial via RJ45
USB via Type-B
USB via Type-A
Emergency Power Off (EPO) Support : Yes
Noise Filtering : 0.3%
Topology : Line Interactive
Transfer Time : 2 to 10 ms
Power
Surge Energy Rating : 645 Joules
Maximum Wattage : 2700 W
Input Voltage Range : 208 to 240 VAC
Input Voltage Adjustable Range : 140 to 280 VAC
Input Frequency : 50/60 Hz ± 3 Hz (Auto Sensing)
Output Voltage Range : 208 to 240 VAC
Output Frequency : 50/60 Hz ± 3 Hz
Load Capacity : 3000 VA
Thermal Dissipation : 184 BTU/Hour
Waveform : Sine Wave
Battery
Cells : 1
Chemistry : Lead-Acid
Charging Time : 3 Hours
Replacement Battery : APCRBC143
Environmental
Operating Temperature : 32 to 104°F / 0 to 40°C
Operating Humidity : 0 to 95%
Storage Temperature : 5 to 113°F / -15 to 45°C
Storage Humidity : 0 to 95%
Operating Altitude : 10,000' / 3000 m
Storage Altitude : 50,000' / 15,000 m
Noise Level : 55 dBA
Certifications : REACH, RoHS, as per Manufacturer
Physical
Cable Length : 8' / 2.4 m
Rackmount Size : 4 RU (with Included Hardware)
Dimensions (W x H x D) : 17 x 7 x 19" / 432 x 178 x 483 mm
Weight : 85.2 lb / 38.6 kg
Packaging Info
Package Weight : 107 lb
Box Dimensions (LxWxH) : 25 x 23 x 13"
