Intel Core I5-7600 (CM8067702868011)

Home Processor Intel Core I5-7600

Product Specification

General
CPU Model : Intel Core i5-7600
CPU Socket : LGA 1151
Manufacturing Process : 14 nm
Maximum Number of PCIe Lanes : 16 (Revision 3.0)
Unlocked : No
Maximum CPU Configuration : 1S
Delivery Method : Download
Internet Connection Required : Yes
Performance
Number of Cores : 4
Number of Threads : 4
Base Clock Speed : 3.5 GHz
Maximum Boost Speed : 4.1 GHz
L3 Cache : 6 MB
Memory Support
Memory Support
DDR3L 1333, 1600 MHz
DDR4 2133, 2400 MHz
ECC Memory : No
Channel Architecture : Dual Channel
Maximum Capacity : 64 GB
Maximum Memory Bandwidth : 41.6 GB/s
Power
Thermal Design Power (TDP) : 65 W
Maximum Temperature : 212°F / 100°C
Included Thermal Solution : PCG 2015C (65 W)
Thermal Monitoring Technologies : Yes
Thermal Solution : PCG 2015C (65 W)
Integrated Graphics
Graphics Chipset : Intel HD Graphics 630
Output Support : eDP, DisplayPort, HDMI
Base Clock Speed : 350 MHz
Maximum Resolution Support : 4096 x 2304 at 60 Hz
Supported APIs
OpenGL: 4.5
DirectX: 12
Number of Displays : 3
Maximum Shared Video Memory : 64 GB
Maximum Boost Speed : 1.15 GHz
Packaging Info
Package Weight : 0.58 lb
Box Dimensions (LxWxH) : 4.75 x 4.3 x 2.75"
AMD
Performance Technologies : Precision Boost 2
Technology
AES Support : Yes
Extension : AVX 2.0, SSE 4.1/4.2
Instruction Set : 64-Bit
Virtualization : Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
Intel
DMI : DMI3 (8 GT/s)
Optane Memory Support : Yes
vPro Support : Yes
Performance Technologies : SpeedStep, Stable Image Platform Program, TSX-NI, Turbo Boost 2.0
Security Technologies : Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, MPX (Memory Protection Extensions), OS Guard, Secure Key, Software Guard Extensions, Trusted Execution Technology
Video Technologies : Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
Windows
Supported OS Versions : Windows 10 (32/64-Bit)
Storage Requirements : 4 GB
Processor Requirement : 1.6 GHz
RAM Requirement : 4 GB
Minimum Display Resolution : 1280 x 768
Mac
Supported OS Versions : 10.13 - 10.15
Storage Requirements : 10 GB
Processor Requirement : Intel
RAM Requirement : 4 GB
Minimum Display Resolution : 1280 x 800

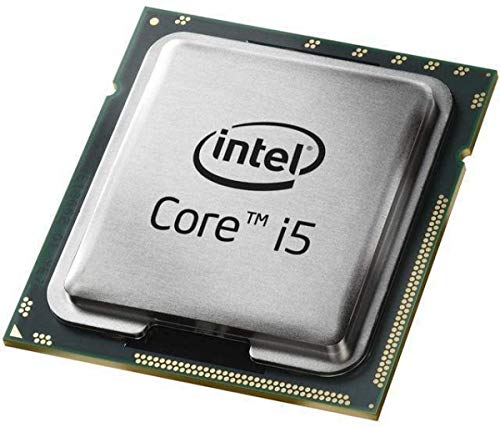

Intel Core i5-7600, 4 Cores & 4 Threads Desktop Processor with Intel HD Graphics 630 (OEM Pack-Tray Packaging)

  (1 Total Review)
 Hot Selling

Intel Core i5-7600 is another most popular processor from the Intel Core-i5 series. The processor support 4 CPU threads and 4 CPU cores with a maximum boost speed of 4.1 GHz and a base clock speed of 3.5 GHz.

It supports 6 MB of L3 Cache memory, dual-channel DDR4-2400 MHz architecture. It also comes with Intel HD Graphics 630, so you don't require any separate discrete graphics card.

Product Features

  • The Intel Core i5-7600 is a 7th generation processor from Intel Core-i5 family.
  • It has 4 CPU cores and 4 processing threads for optimal performance.
  • The processor comes with 4.1 GHz of boost clock speed and support 3.5 GHz of base clock speed.
  • It has 6MB of L3 cache memory, dual-channel DDR4 architecture and comes with intel HD Graphics 630.
