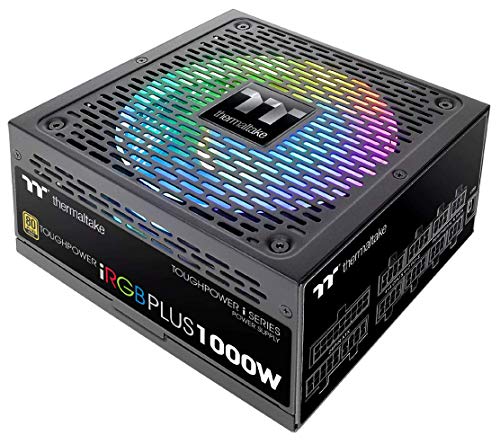

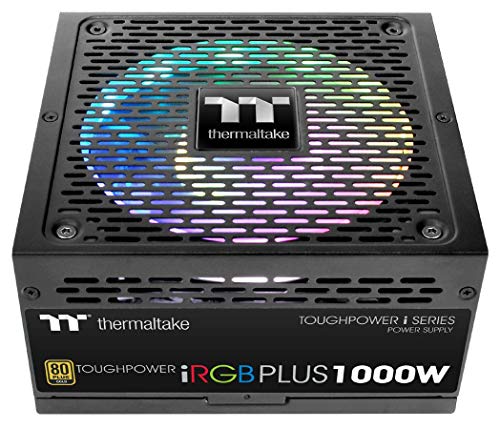

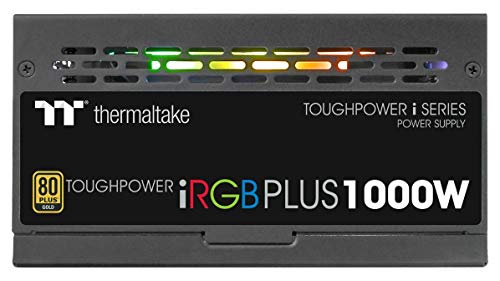

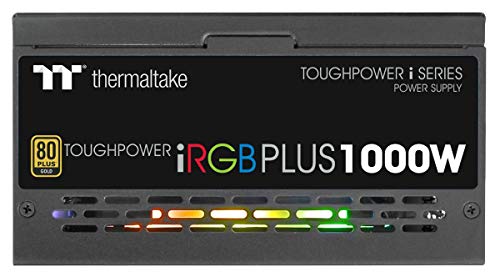

Thermaltake Toughpower IRGB Plus (PS-TPI-1000F3FDGU-1)

Home Power Supply Thermaltake Toughpower IRGB Plus

Product Specification

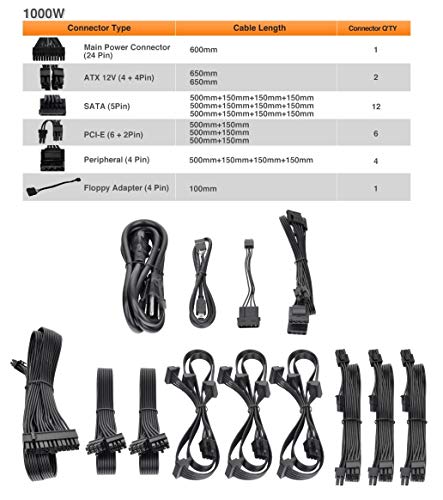

Connectivity
Total Connectors
1 x 24-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
12 x 15-Pin SATA
6 x 6+2-Pin PCIe
4 x 4-Pin ATX CPU
1 x 4-Pin Floppy
Cable Design : Flat, Modular
PCIe Connector Distances
19.7" / 500 mm
5.9" / 150 mm
SATA Connector Distances
19.7" / 500 mm
5.9" / 150 mm
5.9" / 150 mm
5.9" / 150 mm
Peripheral Connector Distances
19.7" / 500 mm
5.9" / 150 mm
5.9" / 150 mm
5.9" / 150 mm
Floppy Connector Distances : 3.9" / 100 mm (Adapter)
ATX Connector Distance : 23.6" / 600 mm
EPS Connector Distances : 25.6" / 650 mm

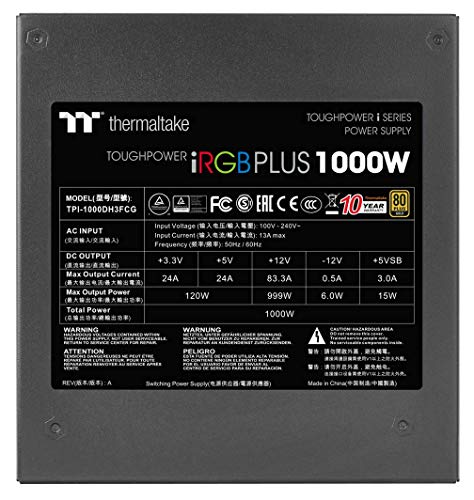

Electrical
Total Wattage : 1000 W
Number of +12 V Rails : 1
Combined Power for +12 V : 999 W
Max Load for +12 V : 83.3 A
Combined Power for +3.3/+5 V : 120 W
Max Load for +3.3 V : 24 A
Max Load for +5 V : 24 A
Max Power for +5 Vsb : 15 W
Max Load for +5 Vsb : 3 A
Max Power for -12 V : 6 W
Max Load for -12 V : 0.5 A
Peak Power : 1200 W
AC Input Power : 100 to 240 VAC, 50 / 60 Hz at 13 A
General
Efficiency Rating : 80 PLUS Gold
Efficiency : 90%
Hold up Time : 16 ms at 100% Load
Power-Good Signal : 100 to 500 ms
Cooling
Fan Size : 140 mm
Bearing Type : Hydraulic
Environmental
Operating Temperature : 32 to 122°F / 0 to 50°C
Operating Humidity : 20 to 90%
Storage Temperature : -4 to 158°F / -20 to 70°C
Storage Humidity : 5 to 95%
Physical
Form Factor : ATX
Compliance : ATX 12 V v2.4, EPS 12 V v2.92
Mean Time Between Failures (MTBF) : 120,000 Hours
Dimensions : 5.91 x 3.39 x 6.3" / 150 x 86 x 160 mm
Packaging Info
Package Weight : 8.06 lb
Box Dimensions (LxWxH) : 12.7 x 9.1 x 6.3"

Thermaltake Toughpower iRGB Plus 1000W 80+ Gold SLI/Crossfire Ready RGB LED ATX12V V2.4/ EPS V2.92

  (431 Total Review)
 Hot Selling

Product Features

  • SPM (SMART POWER MANAGEMENT) - Monitoring Real-Time PSU/CPU/VGA/RAM/HDD Status, Controlling Lighting, and Receiving Warning Alert via PC App and Mobile App
  • WORK with RAZER CHROMA - Synchronize gaming and RGB lighting effects with Razer Chroma ecosystem
  • WORK with ALEXA - Control lights or fan speed by talking to Alexa-enabled device
  • SMART ZERO FAN - Activate fan through app or when reach 30% of rated load to minimize the noise

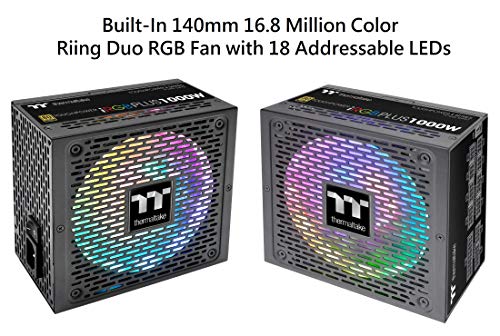

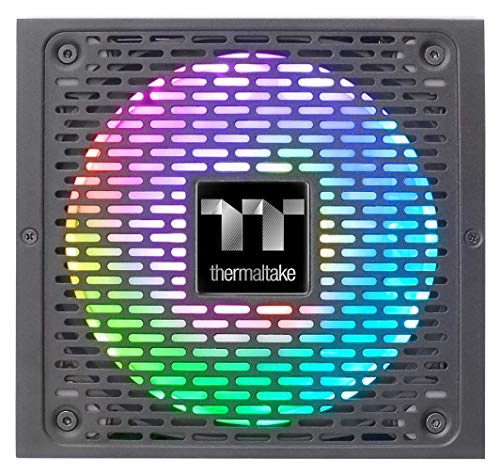

  • BUILT-IN RIING DUO RGB FAN - 16. 8 million color Riing Due 140mm RGB fan with 18 addressable LED to light your unique build up
  • 80+ CERTIFIED GOLD - Supporting 80 PLUS Gold efficiency up to 90% and optimized for C6/C7 States Ready

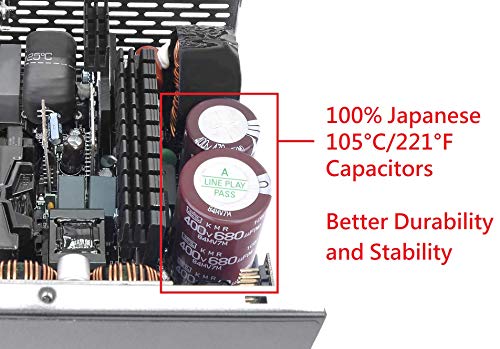

  • MAIN JAPANESE CAPACITORS - 105°C/221°F Japanese capacitors provide superb performance and reliability
  • LOW RIPPLE NOISE – Ensure excellent power supply stability; keep performance-critical components, such as VGA card, to operate reliably for longer

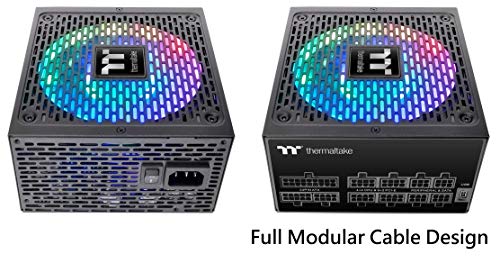

  • FULL MODULAR CONNECTORS – 24 Pin x 1 / 4+4 Pin x 2 / SATA x 12 / PCI-E x 6 / Peripheral x 4 / FDD x 1
  • INDUSTRY GRADE PROTECTIONS - (OCP) Over Current, (OPP) Over Power, (OVP) Over Voltage, (OTP) Over Temperature, and (SCP) Short Circuit protections
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
Out of Stock
Add Product to List View on Amazon
