Product Specification
ConnectivityTotal Connectors1 x 24-Pin ATX Motherboard
1 x 4+4-Pin EPS CPU
9 x 15-Pin SATA
4 x 6+2-Pin PCIe
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy
Cable Design : Flat, Modular

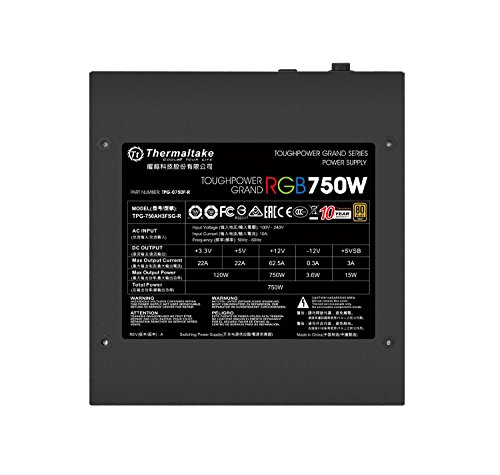

ElectricalTotal Wattage : 750 W
Number of +12 V Rails : 1
Combined Power for +12 V : 750 W
Max Load for +12 V : 62.5 A
Combined Power for +3.3/+5 V : 120 W
Max Load for +3.3 V : 22 A
Max Load for +5 V : 22 A
Max Power for +5 Vsb : 15 W
Max Load for +5 Vsb : 3 A
Max Power for -12 V : 3.6 W
Max Load for -12 V : 0.3 A
Peak Power : 900 W
AC Input Power : 100 to 240 VAC, 50 / 60 Hz at 10 A
Voltage Protection Range+3.3 V: 4.3 V
+5 V: 6.5 V
+12 V: 15.5 V
GeneralEfficiency Rating : 80 PLUS Gold
Efficiency : 90%
Hold up Time : 16 ms at 100% Load
Power-Good Signal : 100 to 500 ms
CoolingFan Size : 140 mm
Bearing Type : Hydraulic
EnvironmentalOperating Temperature : 32 to 122°F / 0 to 50°C
Operating Humidity : 20 to 90%
Storage Temperature : -40 to 158°F / -40 to 70°C
Storage Humidity : 5 to 95%
PhysicalForm Factor : ATX
Compliance : ATX 12 V v2.4, EPS 12 V v2.92
Protection : Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Mean Time Between Failures (MTBF) : 120,000 Hours
Dimensions : 5.91 x 3.39 x 6.3" / 150 x 86 x 160 mm
Packaging InfoPackage Weight : 6.285 lb
Box Dimensions (LxWxH) : 12.6 x 8.4 x 6.2"
