Product Specification

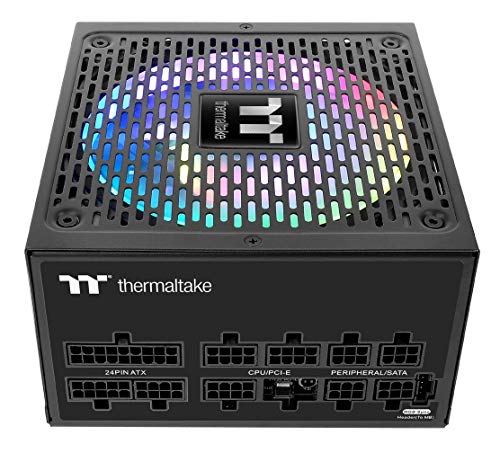

ConnectivityTotal Connectors1 x 24-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
12 x 15-Pin SATA
6 x 6+2-Pin PCIe
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy

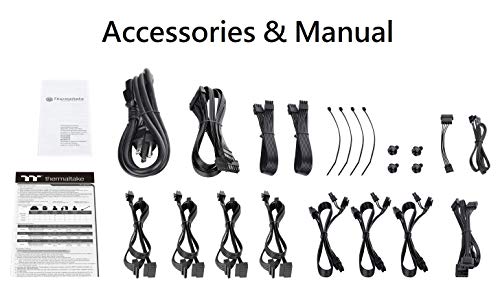

Cable Design : Flat, Modular

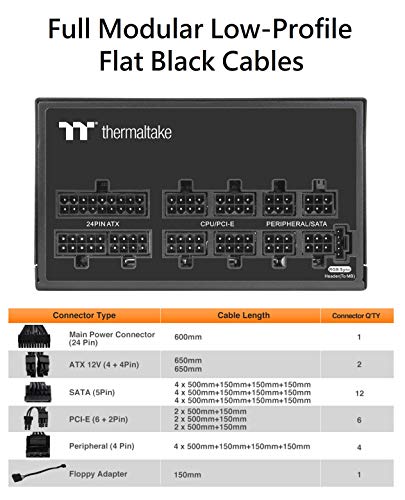

PCIe Connector Distances19.7" / 500 mm
5.9" / 150 mm
SATA Connector Distances19.7" / 500 mm
5.9" / 150 mm
5.9" / 150 mm
Peripheral Connector Distances19.7" / 500 mm
5.9" / 150 mm
5.9" / 150 mm
5.9" / 150 mm
Floppy Connector Distances : 5.9" / 150 mm (Adapter)
ATX Connector Distance : 23.6" / 600 mm
EPS Connector Distances : 25.6" / 650 mm
ElectricalTotal Wattage : 850 W
Number of +12 V Rails : 1
Combined Power for +12 V : 850 W
Max Load for +12 V : 70.9 A
Combined Power for +3.3/+5 V : 120 W
Max Load for +3.3 V : 22 A
Max Load for +5 V : 22 A
Max Power for +5 Vsb : 15 W
Max Load for +5 Vsb : 3 A
Max Power for -12 V : 3.6 W
Max Load for -12 V : 0.3 A
Peak Power : 1020 W
AC Input Power : 100 to 240 VAC, 50 / 60 Hz at 12 A
GeneralEfficiency Rating : 80 PLUS Gold
Hold up Time : 16 ms at 100% Load
Power-Good Signal : 100 to 500 ms
CoolingFan Size : 140 mm
Bearing Type : Hydraulic
EnvironmentalOperating Temperature : 32 to 122°F / 0 to 50°C
Operating Humidity : 20 to 90%
Storage Temperature : -4 to 158°F / -20 to 70°C
Storage Humidity : 5 to 95%
PhysicalForm Factor : ATX
Protection : Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Mean Time Between Failures (MTBF) : 120,000 Hours

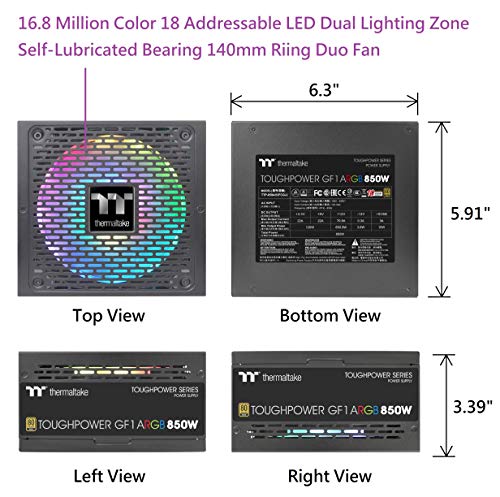

Dimensions : 5.91 x 3.39 x 6.3" / 150 x 86 x 160 mm
