Thermaltake Toughpower GF1 PE (PS-TPD-0650FNFAGE-1)

Home Power Supply Thermaltake Toughpower GF1 PE

Product Specification

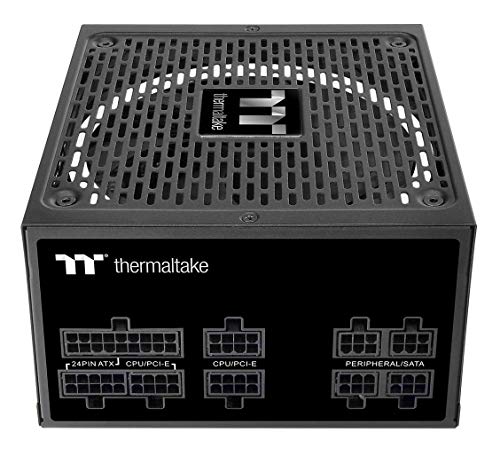

Connectivity
Total Connectors
1 x 24-Pin ATX Motherboard
1 x 4+4-Pin EPS CPU
9 x 15-Pin SATA
4 x 6+2-Pin PCIe
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy
Cable Design : Flat, Modular
PCIe Connector Distances
19.7" / 500 mm
5.9" / 150 mm
SATA Connector Distances
19.7" / 500 mm
5.9" / 150 mm
5.9" / 150 mm
Peripheral Connector Distances
19.7" / 500 mm
5.9" / 150 mm
5.9" / 150 mm
5.9" / 150 mm
Floppy Connector Distances : 5.9" / 150 mm (Adapter)
ATX Connector Distance : 23.6" / 600 mm
EPS Connector Distances : 25.6" / 650 mm

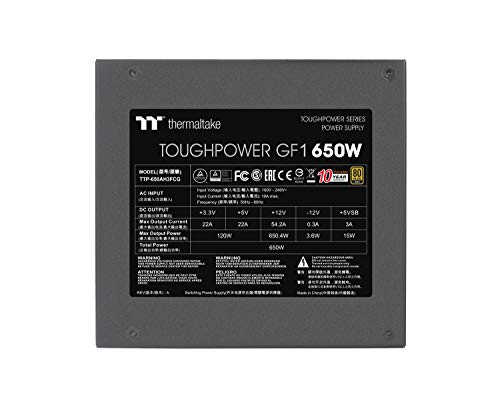

Electrical
Total Wattage : 650 W
Number of +12 V Rails : 1
Combined Power for +12 V : 650.4 W
Max Load for +12 V : 54.2 A
Combined Power for +3.3/+5 V : 120 W
Max Load for +3.3 V : 22 A
Max Load for +5 V : 22 A
Max Power for +5 Vsb : 15 W
Max Load for +5 Vsb : 3 A
Max Power for -12 V : 3.6 W
Max Load for -12 V : 0.3 A
Peak Power : 780 W
AC Input Power : 100 to 240 VAC, 50 / 60 Hz at 10 A
Voltage Protection Range
+3.3 V: 4.5 V
+5 V: 7 V
+12 V: 14.5 V
General
Efficiency Rating : 80 PLUS Gold
Hold up Time : 16 ms at 100% Load
Power-Good Signal : 100 to 500 ms
Cooling
Fan Size : 140 mm
Bearing Type : Hydraulic
Environmental
Operating Temperature : 32 to 122°F / 0 to 50°C
Operating Humidity : 20 to 90%
Storage Temperature : -4 to 158°F / -20 to 70°C
Storage Humidity : 5 to 95%
Physical
Form Factor : ATX
Protection : Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Certifications : BSMI, CE, EAC, FCC, TUV, cTUVus, as per Manufacturer
Mean Time Between Failures (MTBF) : 120,000 Hours
Dimensions : 5.91 x 3.39 x 6.3" / 150 x 86 x 160 mm
Packaging Info
Package Weight : 6.48 lb
Box Dimensions (LxWxH) : 12.7 x 9.1 x 6.3"

Thermaltake Toughpower GF1, 80+ Gold Certified 650W SLI/ CrossFire Ready Full Modular Power Supply

  (3034 Total Review)
 Hot Selling
n/s

Product Features

  • [80+ gold and Intel C6/C7 States ready] - Deliver up to 90% efficiency, Gf1 Series optimized to work with all generations of Intel's processors to achieve maximum energy saving
  • [Ultra quiet 140mm hydraulic Bearing fan] - Self-lubricated hydraulic Bearing PWM fan superior cooling performance and near silent operation

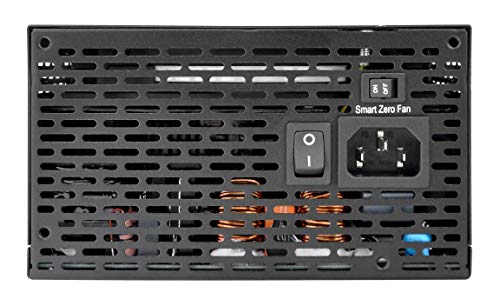

  • [Smart zero fan] - Auto-regulated fan speed based on power consumption for a quiet and efficient operation. Fan works only when PSU work load goes over 30%. a switch at the back of the PSU can be turned off to have the fan spun constantly
  • [16AWG wires] - Upgraded CPU/PCI E main cables (16AWG wires) for high end enthusiasts Pcs
  • [Japanese capacitors] - 100% High quality 105°C (221°F) Japanese capacitors offer the highest stability, durability, and reliability
  • [Zero cable platform] - Daughterboards are directly soldered to the Motherboard for better heat dissipation and impressive output power quality
  • [<30 mV low ripple noise] - Low ripple ensures excellent performance and keeps performance-critical components, such as high-end graphic card, operating reliably longer
  • [Strict voltage regulation] - <2% Voltage regulation for major rails to meet the highest performance, compared to Intel's standard 5%
  • [High amperage single +12V rail] - Ensures a stable and reliable supply to other PC components
  • [Industrial protections] - (UVP) Under Voltage protection, (OVP) Over Voltage protection, (SCP) short circuit protection, (OPP) over Power Protection, (OTP) over temperature protection, and (OCP) Over current protection
