Product Specification

Connectivity

Total Connectors

1 x 24-Pin ATX Motherboard

1 x 4+4-Pin EPS CPU

4 x 6+2-Pin PCIe

6 x 15-Pin SATA

4 x 4-Pin Peripheral / Molex

Cable Design : Flat, Modular, Sleeved

PCIe Connector Distances

21.6" / 550 mm

4.7" / 120 mm

21.6" / 550 mm

4.7" / 120 mm

SATA Connector Distances

15.8" / 400 mm

4.7" / 120 mm

25.6" / 650 mm

4.7" / 120 mm

Peripheral Connector Distances

15.7" / 400 mm

4.7" / 120 mm

ATX Connector Distance : 23.6" / 600 mm

EPS Connector Distances : 27.6" / 700 mm

Electrical

Total Wattage : 560 W

Number of +12 V Rails : 1

Combined Power for +12 V : 560 W

Max Load for +12 V : 46.6 A

Combined Power for +3.3/+5 V : 110 W

Max Load for +3.3 V : 20 A

Max Load for +5 V : 20 A

Max Load for +5 Vsb : 3 A

Max Load for -12 V : 0.3 A

AC Input Power : 100 to 240 VAC, 50 / 60 Hz at 10 to 5 A

General

Efficiency Rating : 80 PLUS Platinum

Cooling

Fan Size : 140 mm

Bearing Type : Fluid Dynamic Bearings (FDB)

Environmental

Storage Temperature : 122°F / 50°C

Physical

Form Factor : ATX

Compliance : ATX 12 V v2.4, EPS 12 V v2.92

Protection : Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection

Certifications : BSMI, CB, CCC, CE, EAC, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer

Mean Time Between Failures (MTBF) : 100,000 Hours

Dimensions : 5.91 x 5.91 x 3.39" / 150 x 150 x 86 mm

Weight : 3.55 lb / 1.61 kg

Packaging Info

Package Weight : 6.26 lb

Box Dimensions (LxWxH) : 13 x 8.4 x 4.4"

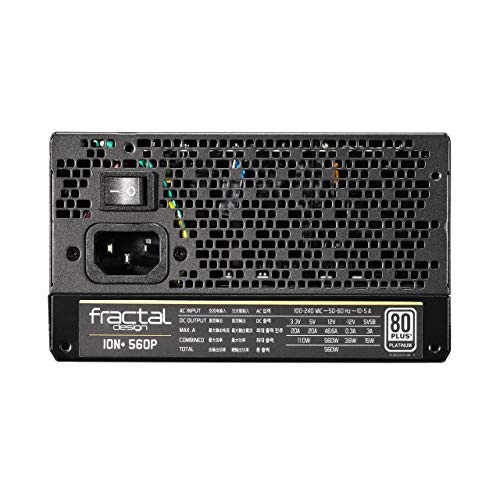

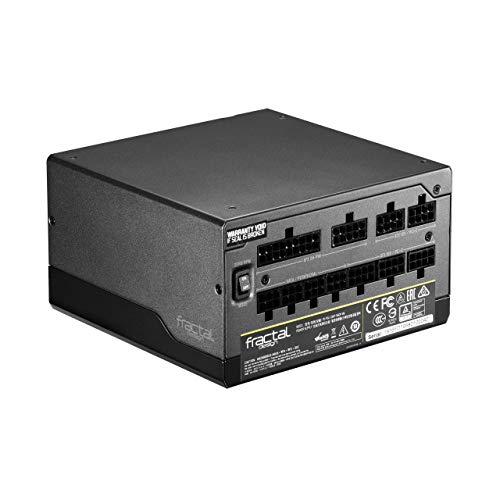

Fractal Design Ion+, 80+ Platinum Certified 560W Fully Modular ATX Power Supply

(266 Total Review)

Product Features

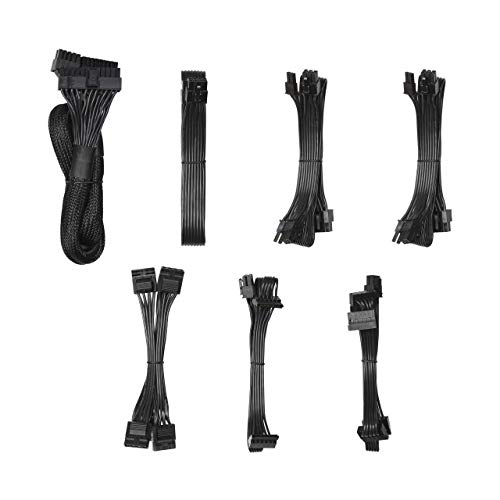

Fractal Design UltraFlex DC wires have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation

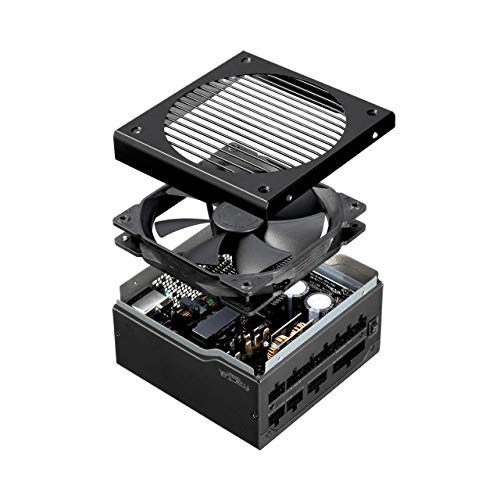

Custom-tailored Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing
80 plus Platinum efficiency for optimized electrical performance and reduced heat generation

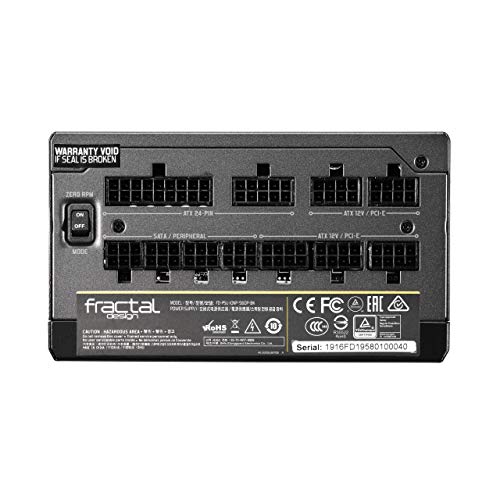

User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
Outstanding output quality with tight voltage regulation and extremely low noise and Ripple
Fully modular design for reduced clutter and maximum ease of installation

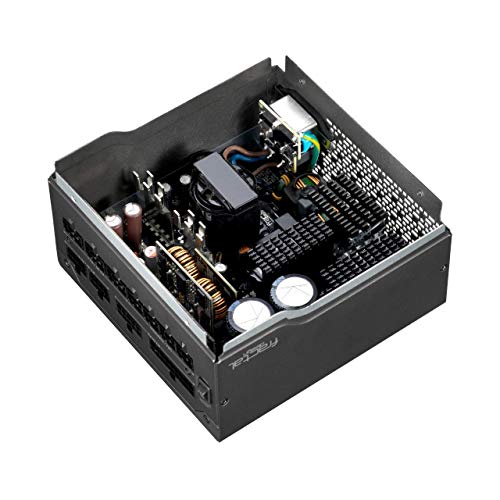

Premium Japanese 105°c capacitors provide enhanced reliability and durability
Extensive 10 year

Add Product to List

Amazon

Out of Stock · Last Checked At: Nov 9, 2026

View on Amazon

As an Amazon Associate, PC Builder earns from qualifying purchases. Prices and availability are as of the date shown and may change. Affiliate Disclosure

Product Specification

Connectivity

Total Connectors

1 x 24-Pin ATX Motherboard

1 x 4+4-Pin EPS CPU

4 x 6+2-Pin PCIe

6 x 15-Pin SATA

4 x 4-Pin Peripheral / Molex

Cable Design : Flat, Modular, Sleeved

PCIe Connector Distances

21.6" / 550 mm

4.7" / 120 mm

21.6" / 550 mm

4.7" / 120 mm

SATA Connector Distances

15.8" / 400 mm

4.7" / 120 mm

25.6" / 650 mm

4.7" / 120 mm

Peripheral Connector Distances

15.7" / 400 mm

4.7" / 120 mm

ATX Connector Distance : 23.6" / 600 mm

EPS Connector Distances : 27.6" / 700 mm

Electrical

Total Wattage : 560 W

Number of +12 V Rails : 1

Combined Power for +12 V : 560 W

Max Load for +12 V : 46.6 A

Combined Power for +3.3/+5 V : 110 W

Max Load for +3.3 V : 20 A

Max Load for +5 V : 20 A

Max Load for +5 Vsb : 3 A

Max Load for -12 V : 0.3 A

AC Input Power : 100 to 240 VAC, 50 / 60 Hz at 10 to 5 A

General

Efficiency Rating : 80 PLUS Platinum

Cooling

Fan Size : 140 mm

Bearing Type : Fluid Dynamic Bearings (FDB)

Environmental

Storage Temperature : 122°F / 50°C

Physical

Form Factor : ATX

Compliance : ATX 12 V v2.4, EPS 12 V v2.92

Protection : Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection

Certifications : BSMI, CB, CCC, CE, EAC, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer

Mean Time Between Failures (MTBF) : 100,000 Hours

Dimensions : 5.91 x 5.91 x 3.39" / 150 x 150 x 86 mm

Weight : 3.55 lb / 1.61 kg

Packaging Info

Package Weight : 6.26 lb

Box Dimensions (LxWxH) : 13 x 8.4 x 4.4"

Fractal Design Ion+ Platinum (FD-PSU-IONP-560P-BK-US)

Product Specification

Fractal Design Ion+, 80+ Platinum Certified 560W Fully Modular ATX Power Supply

Product Features

Product Specification
