Be Quiet! Pure Power 11 (BN627)

Home Power Supply Be Quiet! Pure Power 11

Product Specification

Connectivity
Total Connectors
1 x 20+4-Pin ATX Motherboard
1 x 4+4-Pin EPS CPU
4 x 6+2-Pin PCIe
3 x 15-Pin SATA
1 x 4-Pin Floppy
Cable Design : Sleeved
PCIe Connector Distances : 19.7" / 500 mm
SATA Connector Distances
19.7" / 500 mm
13.8" / 350 mm
7.9" / 200 mm
2" / 50 mm
Peripheral Connector Distances
19.7" / 500 mm
13.8" / 350 mm
Floppy Connector Distances : 19.7" / 500 mm
ATX Connector Distance : 21.7" / 550 mm
EPS Connector Distances : 23.6" / 600 mm
Electrical
Total Wattage : 600 W
Number of +12 V Rails : 2
Combined Power for +12 V : 576 W
Max Load for +12 V : 48 A
Combined Power for +3.3/+5 V : 140 W
Max Load for +3.3 V : 25 A
Max Load for +5 V : 18 A
Max Power for +5 Vsb : 15 W
Max Load for +5 Vsb : 3 A
Max Power for -12 V : 3.6 W
Max Load for -12 V : 0.3 A
Peak Power : 650 W
AC Input Power : 120 to 240 VAC, 50 / 60 Hz at 8 to 5 A
General
Efficiency Rating : 80 PLUS Gold
Efficiency : 92%
Hold up Time : 23 ms at 100% Load
Cooling
Fan Size : 120 mm
Fan Speed : 1260 rpm
Bearing Type : Rifle
Noise Level : 9.1 to 22.9 dBA
Environmental
Operating Temperature : 104°F / 40°C
Physical
Form Factor : ATX
Compliance : ATX 12 V v2.4, EPS 12 V v2.92
Protection : Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Certifications : BSMI, CB, CCC, CE, ENERGY STAR, ErP Lot 6, FCC, RCM, RoHS, TUV, WEEE, as per Manufacturer
Mean Time Between Failures (MTBF) : 100,000 Hours
Dimensions : 5.91 x 5.91 x 3.39" / 150 x 150 x 86 mm
Weight : 4.63 lb / 2.1 kg
Packaging Info
Package Weight : 5.36 lb
Box Dimensions (LxWxH) : 10.4 x 8.1 x 4.05"

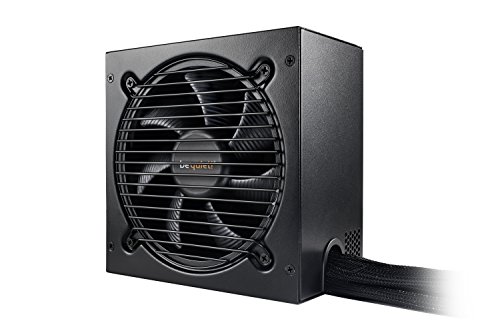

be quiet! Pure Power 11, 80 Plus Gold Certified 600W ATX Power Supply

  (399 Total Review)
 Hot Selling

Product Features

  • 80 PLUS Gold efficiency (up to 92%)
  • Two strong 12V-rails
  • Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
  • DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
  • Silence-optimized 120mm be quiet! Fan
  • Full suite of top safety features
