Be Quiet! Dark Power Pro 11 (BN653)

Home Power Supply Be Quiet! Dark Power Pro 11

Product Specification

General
Form Factor : ATX
Input Voltage : 100 - 240 VAC
Input Frequency : 50 - 60 Hz
Input Current : 13 - 7 A

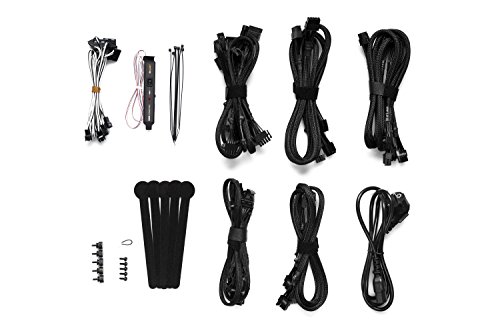

Cable Length
ATX: 23.62" / 600 mm
CPU 8-Pin: 29.53" / 750 mm
CPU 4+4-Pin: 29.53" / 750 mm
4-Pin/SATA: 47.24" / 1200 mm
SATA: 41.34" / 1050 mm
4-Pin: 35.43" / 900 mm
MB Connector: 23.62" / 600 mm
PCIe: 23.62" / 600 mm
Fan: 29.53" / 750 mm
Overclock Key: 29.53" / 750 mm

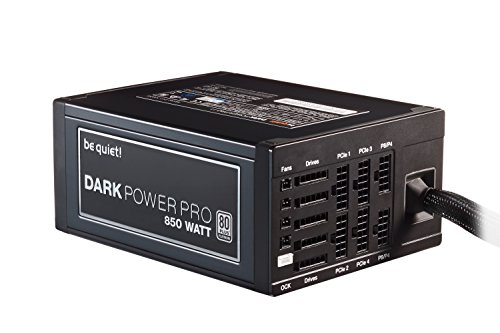

Connectors
1 x 20+4-Pin ATX Motherboard
1 x 8-Pin CPU
1 x 4+4-Pin CPU
6 x 6+2-Pin PCIe
1 x 6-Pin PCIe
8 x SATA
7 x 4-Pin Peripheral
2 x FDD
4 x Fan
1 x Overclocking Key
Output
+3.3 V - 25 A
+5 V - 25 A
+12V 1 - 30 A
+12V 2 - 30 A
+12V 3 - 35 A
+12V 4 - 35 A
-12 V - 0.5 A
+5 Vsb - 3 A
Max combined power 12 V - 840 W
Max combined power 3.3 V + 5 V - 140 W
80 PLUS Certification : Platinum
Dimensions (L x W x D) : 7.6 x 5.91 x 3.39" / 193 x 150 x 86 mm
Weight : 5.27 lb / 2.39 kg
Fan Specifications
Size : 135 mm
Fan Bearing Technology : Fluid-dynamic
Fan Speed : 1500 rpm
Noise Levels : 10.4 dBA at 20% load 10.4 dBA at 50% load 20.1 dBA at 100% load
Packaging Info
Package Weight : 9.98 lb
Box Dimensions (LxWxH) : 14.05 x 10.9 x 4.7"

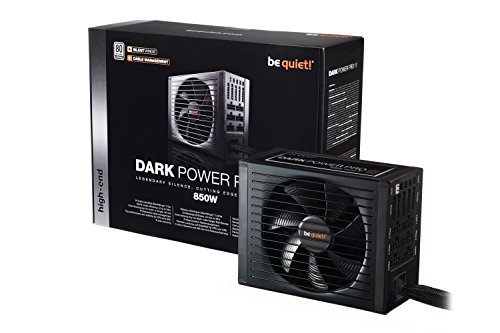

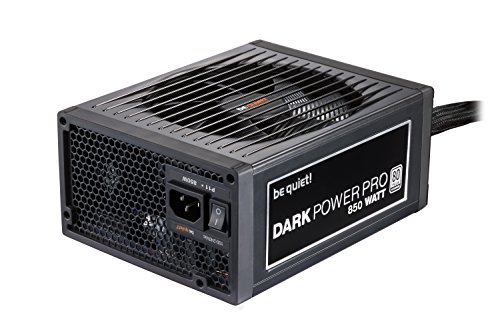

be quiet! Dark Power Pro 11 850W, BN653, Modular, 80 Plus Platinum, Power Supply

  (262 Total Review)
 Hot Selling

Product Features

  • 80Plus PLATINUM efficiency (up to 94%) and unmatched power stability

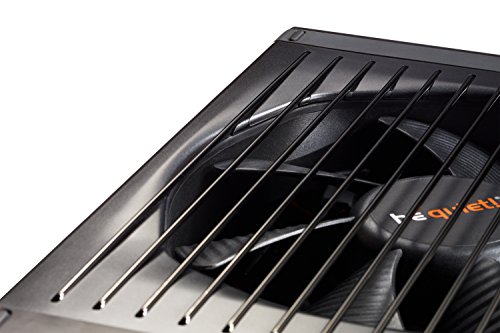

  • Virtually inaudible silent Wings 3 135mm fan with fluid-dynamic bearing
  • 6-Pole fan motor and IC motor control for smooth low-speed operation and reduced noise
  • Large funnel-shaped fan intake facilitates high airflow with less turbulence
  • Overclocking key switches between four 12V-rails and ONE MASSIVE 12V-rail
