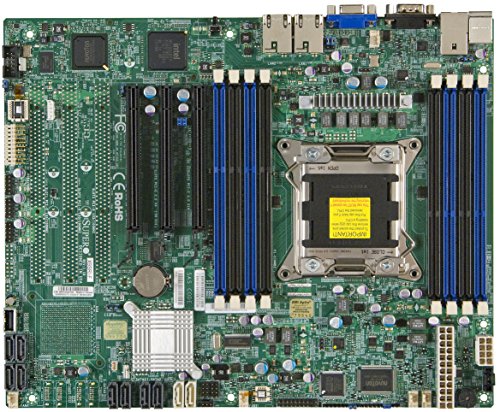

Supermicro X9SRI-F-O

Home Motherboard Supermicro X9SRI-F-O

Product Specification

General
Brand : Supermicro
Model : X9SRI-F-O
Socket Type : LGA 2011
Chipset : Intel C602
Form Factor : ATX
Memory Support
Memory Type : DDR3
RAM Quantity : 8
Max Memory Support : 64 GB
Memory Pin : 288-Pin
Storage Expansion
SATA : 2 x SATA 6 Gb/s
M.2 : 0
RAID Support : Yes
I/O Slots
PCIe Slots : 3 x PCIe x16
Ethernet : 2 x 1 Gb/s
Wireless
Wireless Networking : None

Supermicro DDR3 1066 LGA 2011 Server Motherboard X9SRI-F-O

  (2 Total Review)
 Hot Selling

Product Features

  • CPU: LGA2011; Supports Intel Xeon E5-2600/E5-1600 Processors?(up to 8 cores and up to 130W)
  • Chipset: Intel C602
  • Memory: 8x 240pin DDR3-1600/1333/1066 DIMM Slots, Supports up to 256GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
  • Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8); 1x PCI-Express 2.0 x16 Slot (runs at x4)
  • SATA: 2x SATA3 Ports, 8x SATA2 Ports (four via SCU); Supports RAID 0, 1, 5, 10 (Windows), Support RAID 0, 1, 10 (Linux)
  • Ports: 9x USB 2.0 Ports (2 rear, 6 via headers, 1 Type A); 1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 1x VGA Port; 1x Serial Port; 2x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
  • LAN: Intel i350 Dual Port Gigabit Ethernet Controllers
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
$545.49
