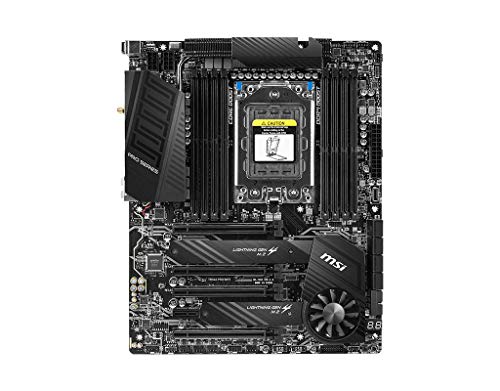

MSI TRX40P

Home Motherboard MSI TRX40P

Product Specification

CPU
Chipset : AMD TRX40
CPU Socket : TRX4

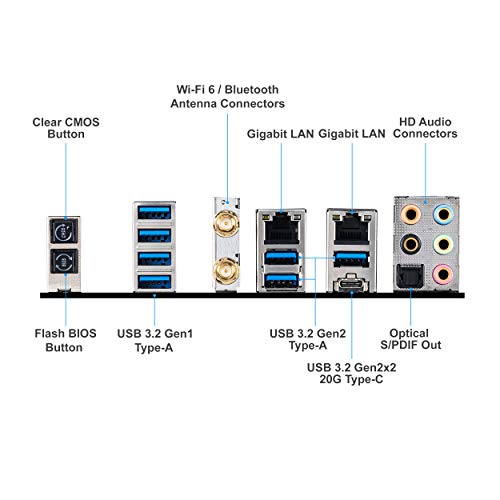

Back Panel I/O
USB
1 x USB 3.2 Gen 2x2 Type-C
3 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
Thunderbolt : None
Display : None
Audio
5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller : 2 x Intel I211AT Gigabit
Wi-Fi Antenna : 2 x Connector
Buttons : BIOS Flashback, Clear CMOS
Memory
Memory Slots : 8 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4600, 4666 MHz
Maximum Capacity : 256 GB
Channel Architecture : Quad Channel
ECC Support : ECC Unbuffered
Storage Expansion
SATA : 8 x SATA III
M.2
1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
U.2 : None
RAID Support : RAID 0, 1, 10
Internal I/O
Expansion Slots
4 x PCIe 4.0 x16
1 x PCIe 3.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support
3-Way NVIDIA SLI
3-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
4 x 4-Pin System
Liquid Cooling : 1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
2 x 8-Pin CPU
Security : Chassis Intrusion, TPM Module
LED Header : 4 x RGB
Diagnostics : 2-Digit Debug LED, Power, Reset, Slow Mode
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP
Audio
Audio Codec : Realtek ALC1220 (7.1-Channel)
Wireless
Bluetooth : 5.0
Wi-Fi : Wi-Fi 6 (802.11ax) (MU-MIMO)
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12 x 9.6" / 30.48 x 24.38 cm
Packaging Info
Package Weight : 6.06 lb
Box Dimensions (LxWxH) : 13.7 x 10.7 x 4.1"

MSI TRX40 PRO WiFi Motherboard (AMD sTRX4, PCIe Gen4, M.2, USB3.2 Gen2x2, DDR4, Dual 10G LAN, Wi-Fi 6, ATX)

  (22 Total Review)
 Hot Selling

The MSI TRX40 PRO WiFi motherboard is a high-performance motherboard built for users who need powerful computing for tasks like video editing, 3D rendering, heavy multitasking, or gaming. The MSI TRX40 PRO WiFi is built with the AMD sTRX4 socket, which is specially designed to support the powerful AMD Ryzen Threadripper CPUs.

Additionally, the TRX40 PRO WiFi supports up to 256GB of DDR4 RAM across 8 DIMM slots, providing fast and smooth multitasking. This motherboard uses the ATX form factor, which fits most standard PC cases. It is built with high-quality materials and military-grade components to ensure long-lasting durability.

Product Features

  • Core boost: with premium layout and fully digital power design to support more Cores and provides better performance.
  • ATX Form Factor.
  • Wi-fi 6: the latest wireless solution supports MU-MIMO and bss color Technology, delivering speeds up to 2400Mbps.
  • Dual 10G LAN.
  • M. 2 expander-z: offers two extra M. 2 slots to increase your storage capacity at maximum speed.
