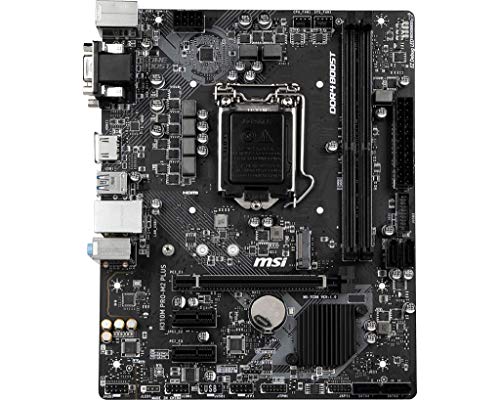

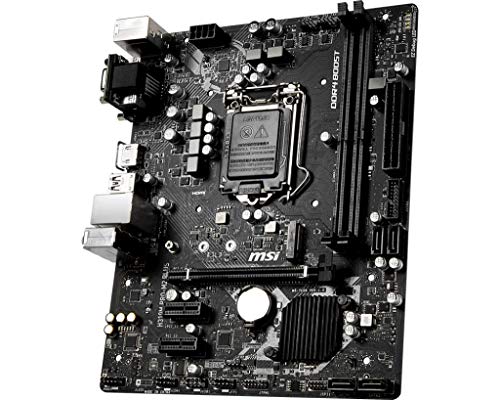

MSI H310M PRO-M2 Plus (H310M PRO-M2 PLUS)

Home Motherboard MSI H310M PRO-M2 Plus

Product Specification

CPU
Chipset : Intel H310
CPU Socket : LGA 1151

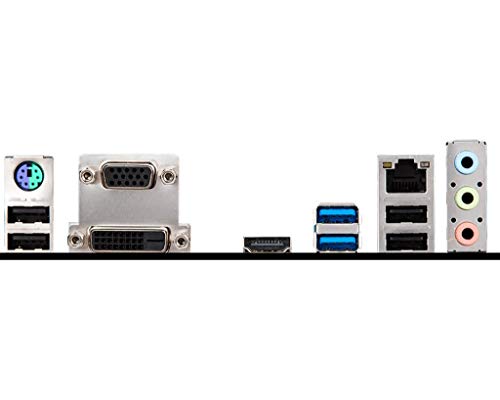

Back Panel I/O
USB
4 x USB 2.0 Type-A
2 x USB 3.1 Gen 1 Type-A
Display
1 x VGA
1 x HDMI
1 x DVI-D
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Intel I219-V Gigabit
PS/2 : 1 x Combo
Memory
Memory Slots : 2 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666 MHz
Maximum Capacity : 32 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 4 x SATA III
M.2 : 1 x M Key 2242, 2260, 2280 (PCIe 2.0 x4, SATA III)
U.2 : None
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16
2 x PCIe 2.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support : None
Air Cooling
1 x 4-Pin CPU
1 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin CPU
Security : Chassis Intrusion, TPM Module
Audio : None
Diagnostics : Clear CMOS
Legacy : 1 x Serial
Front Panel I/O
I/O Connection Headers : USB 3.1
Audio
Audio Codec : Realtek ALC887 (7.1-Channel)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : Micro-ATX
Dimensions : 9.1 x 7.3" / 231.14 x 185.42 mm
Packaging Info
Package Weight : 1.6 lb
Box Dimensions (LxWxH) : 10 x 10 x 2"

MSI ProSeries Intel Coffee Lake H310 LGA 1151 DDR4 D-Sub DVI HDMI Onboard Graphics Micro ATX Motherboard (H310M PRO-M2 Plus)

  (244 Total Review)
 Hot Selling

Product Features

  • Supports 8th Gen Intel Core/ Pentium gold/ Celeron Processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666MHz
  • DDR4 Boost: advanced technology to deliver pure data signals for the best gaming performance and stability
  • Audio Boost: reward your ears with studio grade sound quality
  • M.2 and NVMe support, up to 20 GB/s Using PCI-Express Gen2 x4
