MSI B550UNIFY

Home Motherboard MSI B550UNIFY

Product Specification

General
Brand : MSI
Model : B550UNIFY
Socket Type : AM4
Chipset : AMD B550
Form Factor : ATX
Memory Support
Memory Type : DDR4
RAM Quantity : 4 (Quad Channel)
Max Memory Support : 128 GB
Memory Pin : 288-Pin
Storage Expansion
SATA : 6 x SATA 6 Gb/s
M.2 : M.2 x 2280/22110 M-key, M.2 x 2280 M-key, M.2 x 2280/22110 M-key, M.2 x 2280 M-key
RAID Support : Yes
I/O Slots
USB : 2 x USB 2.0, 1 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2
PCIe Slots : 2 x PCIe x16, 2 x PCIe x1
Display Port : 1 x HDMI
Ethernet : 1 x 2.5 Gb/s
Wireless
Wireless Networking : Wi-Fi 6

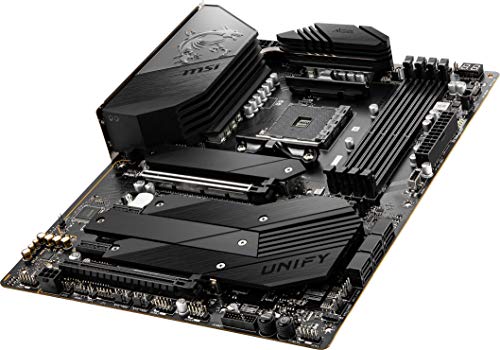

MSI MEG B550 Unify Gaming Motherboard (AMD AM4, DDR4, PCIe 4.0, SATA 6Gb/s, Dual M.2, USB 3.2 Gen 2, HDMI, Wi-Fi 6 AX, ATX, AMD Ryzen 5000 Series Processors)

  (110 Total Review)
 Hot Selling

Product Features

  • Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
  • Supports DDR4 Memory, Dual Channel 5100(OC) MHz+
  • Quadruple M.2 Connectors: Maximum onboard 4x M.2 slots, support the latest Gen 4 solution with up to 64GB/s bandwidth for maximum transfer speed
  • Extreme Power Design: Direct 14+2 phases with 90A Power Stage and dual CPU power connectors to unleash your true power
  • Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
$267.18
