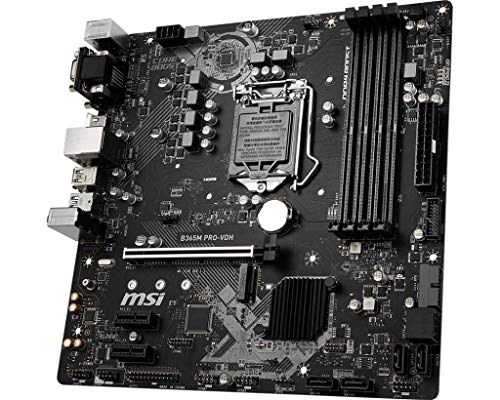

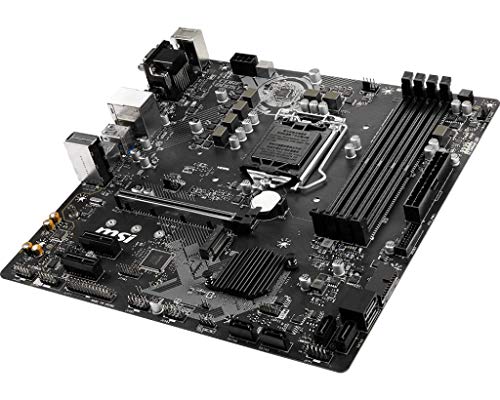

MSI B365MPROVDH (B365M PRO-VDH)

Home Motherboard MSI B365MPROVDH

Product Specification

General
Product Type : Motherboard - micro ATX
Chipset Type : Intel B365
Processor Socket : LGA1151 Socket
Max Processors Qty : 1
Compatible Processors : Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size : 64 GB
Technology : DDR4
Bus Clock : 2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check : Non-ECC
Registered or Buffered : Unbuffered
Features : Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Analog Audio
Type : HD Audio (8-channel)
Audio Codec : Realtek ALC892
Compliant Standards : High Definition Audio
LAN
Network Controller : Realtek RTL8111H
Network Interfaces : Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces
1 x HDMI
1 x DVI-D
1 x VGA
3 x USB 3.1 Gen 1
2 x USB 2.0
1 x USB-C Gen1
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x LAN (Gigabit Ethernet)
1 x PS/2 keyboard
1 x PS/2 mouse
Internal Interfaces
4 x USB 2.0 - header
4 x USB 3.1 Gen 1 - header
1 x serial - header
1 x audio - header
1 x parallel - header
Power Connectors : 24-pin main power connector, 8-pin ATX12V connector
FEATURES
Hardware Features : MSI Audio Boost, Debug LED, Turbo M.2, MSI Steel Armor, Intel Optane Memory Ready, MSI Core Boost
Miscellaneous
Included Accessories : I/O back plate
Cables Included : 2 x Serial ATA cable
Software Included : Drivers & utilities, MSI X-BOOST
Width : 9.6 in
Depth : 9.6 in
Packaging Info
Package Weight : 1.95 lb
Box Dimensions (LxWxH) : 11.1 x 10.8 x 2.6"

MSI ProSeries Intel B365 LGA 1151 Support 9th/8th Gen Intel Processors Gigabit LAN DDR4 USB/DVI-D/VGA/HDMI Micro ATX Motherboard (B365M PRO-VDH)

  (173 Total Review)
 Hot Selling

Product Features

  • Supports 9th/8th Gen Intel Core/Pentium gold/Celeron Processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666 MHz
  • Turbo M. 2: running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Core boost: with premium layout and fully digital power design to support more Cores and provide better performance
  • Audio Boost: reward your ears with studio grade sound quality
$78.99
