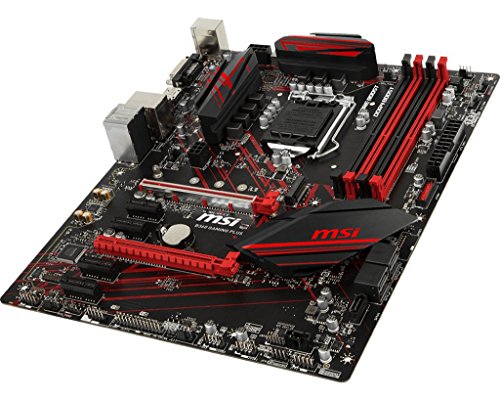

MSI B360 Gaming Plus (B360 GAMING PLUS)

Home Motherboard MSI B360 Gaming Plus

Product Specification

CPU
Chipset : Intel B360
CPU Socket : LGA 1151

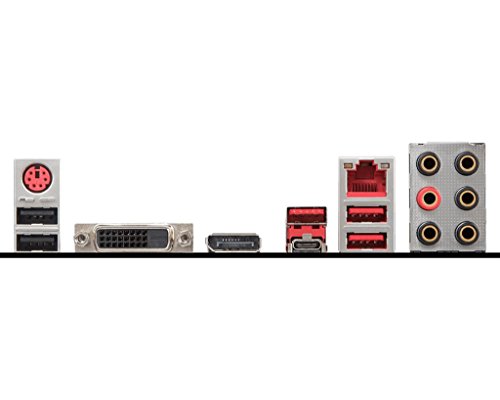

Back Panel I/O
USB
2 x USB 2.0 Type-A
1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C
2 x USB 3.1 Gen 1 Type-A
Display
1 x DVI-D
1 x DisplayPort
Audio : 6 x 3.5 mm
Ethernet / Controller : 1 x Intel I219-V Gigabit
PS/2 : 1 x Combo
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666 MHz
Maximum Capacity : 64 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 5 x SATA III
M.2 : 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
U.2 : None
Internal I/O
Expansion Slots
2 x PCIe 3.0 x16
4 x PCIe 3.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support
2-Way AMD CrossFireX
2-Way NVIDIA SLI
Air Cooling
1 x 4-Pin CPU
5 x 4-Pin System
Liquid Cooling : 1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 6-Pin ATX
Security : Chassis Intrusion, TPM Module
LED Header : 1 x RGB
Audio : None
Diagnostics : Clear CMOS
Add-On : 1 x Thunderbolt Card Header
Legacy
1 x Parallel
1 x Serial
Front Panel I/O
I/O Connection Headers : USB 3.1
Audio
Audio Codec : Realtek ALC892 (7.1-Channel)
Physical
Form Factor : ATX
Dimensions : 12 x 9" / 304.80 x 228.60 mm
Packaging Info
Package Weight : 3 lb
Box Dimensions (LxWxH) : 14 x 11 x 3"

MSI Performance Gaming Intel Coffee Lake B360 LGA 1151 DDR4 Onboard Graphics CFX ATX Motherboard (B360 Gaming Plus)

  (743 Total Review)
 Hot Selling

Product Features

  • Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket, Supports DDR4 Memory, up to 2666 MHz
  • MYSTIC LIGHT and Sync: Personalize your PC with 16.8 million colors / 10 effects controlled in one click with the Mystic Light APP or a mobile device
  • Lightning Fast Game experience: TURBO M.2, Intel Optane Memory Ready. Intel Turbo USB 3.1 GEN2
  • AUDIO BOOST with NAHIMIC: Reward your ears with studio grade sound quality for the most immersive gaming experience, VR Ready: Best virtual reality game experience without latency, reduces motion sickness
  • In-Game Weapons: GAMING Hotkey, X-Boost, Voice Boost
$289

Product Specification

CPU
Chipset : Intel B360
CPU Socket : LGA 1151
Back Panel I/O
USB
2 x USB 2.0 Type-A
1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C
2 x USB 3.1 Gen 1 Type-A
Display
1 x DVI-D
1 x DisplayPort
Audio : 6 x 3.5 mm
Ethernet / Controller : 1 x Intel I219-V Gigabit
PS/2 : 1 x Combo
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666 MHz
Maximum Capacity : 64 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 5 x SATA III
M.2 : 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
U.2 : None
Internal I/O
Expansion Slots
2 x PCIe 3.0 x16
4 x PCIe 3.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support
2-Way AMD CrossFireX
2-Way NVIDIA SLI
Air Cooling
1 x 4-Pin CPU
5 x 4-Pin System
Liquid Cooling : 1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 6-Pin ATX
Security : Chassis Intrusion, TPM Module
LED Header : 1 x RGB
Audio : None
Diagnostics : Clear CMOS
Add-On : 1 x Thunderbolt Card Header
Legacy
1 x Parallel
1 x Serial
Front Panel I/O
I/O Connection Headers : USB 3.1
Audio
Audio Codec : Realtek ALC892 (7.1-Channel)
Physical
Form Factor : ATX
Dimensions : 12 x 9" / 304.80 x 228.60 mm
Packaging Info
Package Weight : 3 lb
Box Dimensions (LxWxH) : 14 x 11 x 3"
