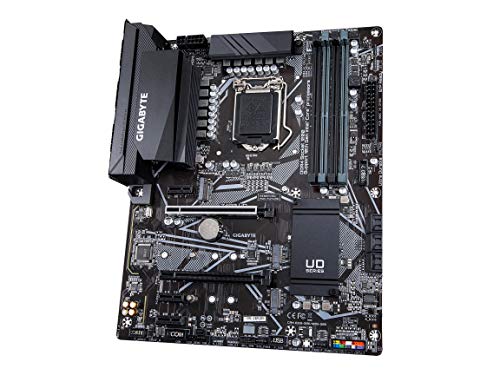

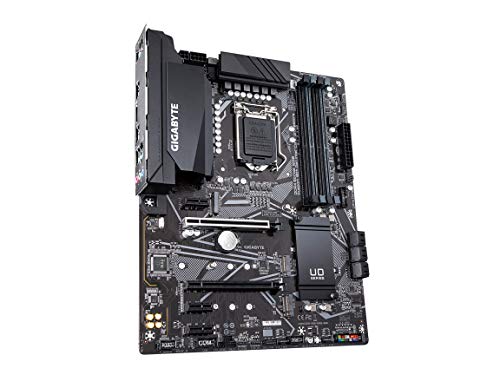

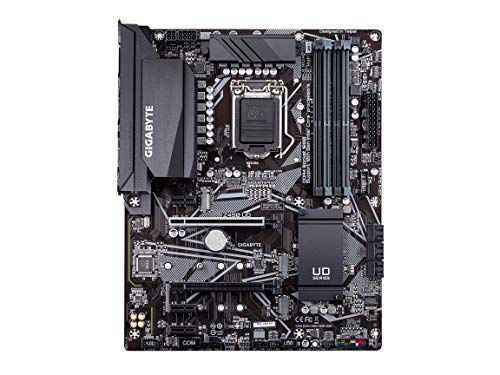

Gigabyte Z490 UD

Home Motherboard Gigabyte Z490 UD

Product Specification

CPU
Chipset : Intel Z490
CPU Socket : LGA 1200
Back Panel I/O
USB
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
5 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt : None
Display : 1 x HDMI 1.4
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Realtek Gigabit
PS/2 : 1 x PS/2
Wi-Fi Antenna : 2 x Connector
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x2, PCIe 3.0 x4)
U.2 : None
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support : 2-Way, Quad-GPU AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
4 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security : TPM Module
LED Header : 4 x RGB
Audio
1 x Speaker
1 x S/PDIF
Diagnostics : Clear CMOS, Flash BIOS
Add-On : 2 x Thunderbolt Card Header
Legacy : 1 x Serial
BIOS
ROM : 256 Mb
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC887 (7.1-Channel)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12.01 x 9.61" / 30.5 x 24.4 cm
Packaging Info
Package Weight : 3.1 lb
Box Dimensions (LxWxH) : 13.3 x 10.9 x 3.3"

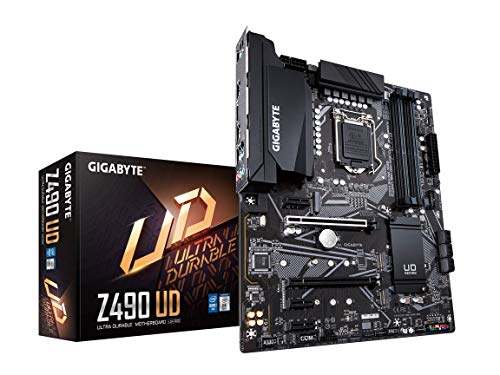

GIGABYTE Z490 UD (Intel LGA1200/Z490/ATX/Dual M.2/Realtek ALC887/Realtek 8118 Gaming LAN/SATA 6Gb/s/USB 3.2 Gen 2/HDMI/Motherboard)

  (132 Total Review)
 Hot Selling

Product Features

  • Supports 10th Gen Intel Core processors
  • Direct 11+1 Phase Digital VRMs with DrMOS Stages
  • Extended MOS Heatsink VRM Cooling
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Realtek GbE LAN
  • 2x M.2 slots
  • AMP-UP AUDIO ALC887 Audio DAC
  • RGB Fusion 2.0
  • Smart Fan 5 Hybrid Fan Headers with smart fan functions (Fan Stop, PWM Controls, Noise Detection)
  • Rear - 1*USB 3.2 Gen2 (A) , 1*USB 3.2 Gen2 (C), 4*USB 3.2 Gen1
  • Memory Storage Capacity: 10000 Tb
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
$199.99 (Used)
