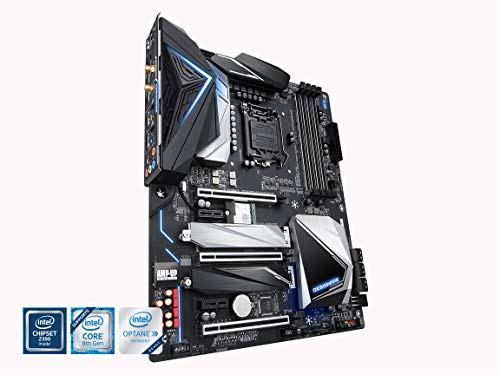

Gigabyte Z390 DESIGNARE

Home Motherboard Gigabyte Z390 DESIGNARE

Product Specification

CPU
Chipset : Intel Z390
CPU Socket : LGA 1151

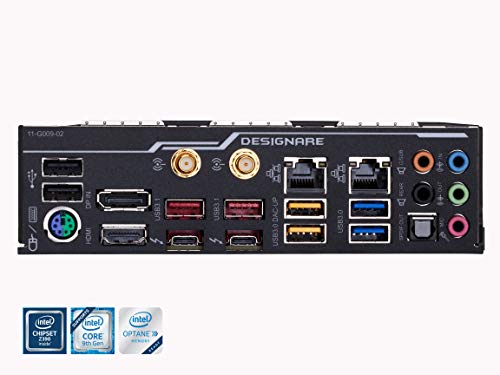

Back Panel I/O
USB
2 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt : 2 x Thunderbolt 3
Display
1 x HDMI 1.4Output
1 x DisplayPort 1.2Input
Audio
5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller : 2 x Intel Gigabit
PS/2 : 1 x PS/2
Wi-Fi Antenna : 2 x Connector
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2 : 2 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified))
U.2 : None
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1
USB
1 x USB 3.2 Gen 2x2 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support
2-Way, Quad-GPU NVIDIA SLI
2-Way, 3-Way, Quad-GPU AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
2 x 4-Pin System
1 x 4-Pin Assistant
Liquid Cooling : 1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
1 x 6-Pin VGA
LED Header : 1 x RGB
Audio
1 x Speaker
1 x S/PDIF
Diagnostics : 2-Digit Debug LED, BIOS Selection, Clear CMOS
BIOS
ROM : 2 x 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2
Audio
Audio Codec : Realtek ALC1220-VB (7.1-Channel)
Wireless
Bluetooth : 5.0
Wi-Fi : Wi-Fi 5 (802.11ac) (MU-MIMO)
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12.01 x 9.61" / 30.5 x 24.4 cm
Packaging Info
Package Weight : 4.355 lb
Box Dimensions (LxWxH) : 13.3 x 10.8 x 3.2"

GIGABYTE Z390 DESIGNARE Gigabyte (Intel LGA1151/Z390/ATX/2xM.2/Thunderbolt 3/Onboard AC Wifi/12+1 Phases Digital Vrm/Motherboard)

  (248 Total Review)
 Hot Selling

Product Features

  • Supports 9th and 8th Gen Intel Core processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12+1 Phases digital VRM solution with DrMOS
  • Advanced thermal design with direct touch heat pipe
  • Intel Thunderbolt 3 - the USB-C that does it all.Bluetooth 5
$269.99
