Gigabyte X399 AORUS PRO

Home Motherboard Gigabyte X399 AORUS PRO

Product Specification

CPU
Chipset : AMD X399
CPU Socket : TR4

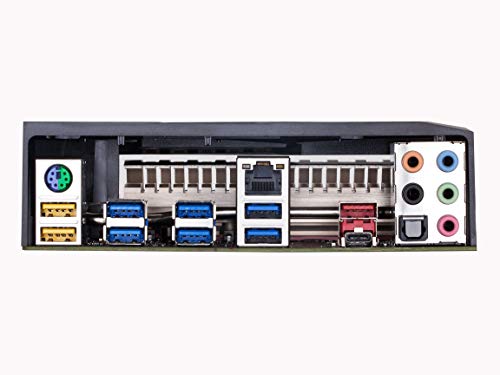

Back Panel I/O
USB
8 x USB 3.1 / USB 3.2 Gen 1 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
Thunderbolt : None
Display : None
Audio
5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller : 1 x Intel Gigabit
PS/2 : 1 x PS/2
Memory
Memory Slots : 8 x 288-Pin
Memory Support : DDR4 2133, 2400, 2667, 2800, 2933, 3200, 3333, 3466, 3600 MHz
Maximum Capacity : 128 GB
Channel Architecture : Quad Channel
ECC Support : Non-ECC, ECC Unbuffered
Storage Expansion
SATA : 8 x SATA III
M.2
2 x M Key 2260, 2280, 22110 (PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x2, PCIe 3.0 x4, SATA III)
U.2 : None
RAID Support : RAID 0, 1, 10
Internal I/O
Expansion Slots
2 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 2.0 x16 (x2 mode)
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support
2-Way, 3-Way, 4-Way, Quad-GPU AMD CrossFireX
2-Way, 3-Way, 4-Way, Quad-GPU NVIDIA SLI
Air Cooling
1 x 4-Pin CPU
4 x 4-Pin System
2 x Thermal Sensor
Liquid Cooling : 3 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU
Security : TPM Module
LED Header : 3 x RGB
Audio
1 x Speaker
1 x S/PDIF
Diagnostics : BIOS Selection, Clear CMOS
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC1220 (7.1-Channel)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12.01 x 9.61" / 30.5 x 24.4 cm
Packaging Info
Package Weight : 4.125 lb
Box Dimensions (LxWxH) : 13.4 x 10.8 x 3.3"

GIGABYTE X399 AORUS PRO (AMD Ryzen Thread Ripper TR4/ATX /3X M.2/Front USB 3.1 Type C/Intel LAN/ALC1220/ Motherboard)

  (119 Total Review)
 Hot Selling

Product Features

  • Supports AMD 2nd generation Ryzen Thread ripper/1st generation Ryzen Thread ripper processors
  • Quad Channel ECC/Non-ECC Unbuffered DDR4, 8 DIMMs, 3600MHz+(OC)
  • Fast Front and rear USB 3.1 Type-C interface.Operating System:Support for Windows 10 64-bit
  • 4-Way Graphics Support with Dual Armor and Ultra Durable Design
  • Server-class digital power design & Gold Plated solid power connectors
$619.99

Product Specification

CPU
Chipset : AMD X399
CPU Socket : TR4
Back Panel I/O
USB
8 x USB 3.1 / USB 3.2 Gen 1 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
Thunderbolt : None
Display : None
Audio
5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller : 1 x Intel Gigabit
PS/2 : 1 x PS/2
Memory
Memory Slots : 8 x 288-Pin
Memory Support : DDR4 2133, 2400, 2667, 2800, 2933, 3200, 3333, 3466, 3600 MHz
Maximum Capacity : 128 GB
Channel Architecture : Quad Channel
ECC Support : Non-ECC, ECC Unbuffered
Storage Expansion
SATA : 8 x SATA III
M.2
2 x M Key 2260, 2280, 22110 (PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x2, PCIe 3.0 x4, SATA III)
U.2 : None
RAID Support : RAID 0, 1, 10
Internal I/O
Expansion Slots
2 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 2.0 x16 (x2 mode)
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support
2-Way, 3-Way, 4-Way, Quad-GPU AMD CrossFireX
2-Way, 3-Way, 4-Way, Quad-GPU NVIDIA SLI
Air Cooling
1 x 4-Pin CPU
4 x 4-Pin System
2 x Thermal Sensor
Liquid Cooling : 3 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU
Security : TPM Module
LED Header : 3 x RGB
Audio
1 x Speaker
1 x S/PDIF
Diagnostics : BIOS Selection, Clear CMOS
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC1220 (7.1-Channel)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12.01 x 9.61" / 30.5 x 24.4 cm
Packaging Info
Package Weight : 4.125 lb
Box Dimensions (LxWxH) : 13.4 x 10.8 x 3.3"
