Gigabyte H370M DS3H

Home Motherboard Gigabyte H370M DS3H

Product Specification

CPU
Chipset : Intel H370
CPU Socket : LGA 1151

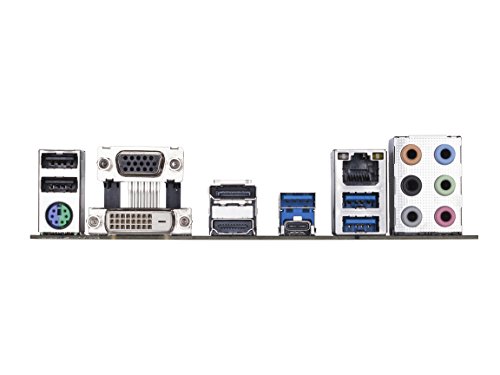

Back Panel I/O
USB
3 x USB 3.1 / USB 3.2 Gen 1 Type-A
1 x USB 3.1 / USB 3.2 Gen 1 Type-C
2 x USB 2.0 Type-A
Thunderbolt : None
Display
1 x HDMI 1.4
1 x DisplayPort 1.2
1 x DVI-D
1 x VGA
Audio : 6 x 3.5 mm
Ethernet / Controller : 1 x Intel Gigabit
PS/2 : 1 x PS/2
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666 MHz
Maximum Capacity : 64 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x2, PCIe 3.0 x4)
U.2 : None
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe x1
USB
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support : 2-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
3 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin CPU
Security : TPM Module
LED Header : 1 x RGB
Audio
1 x Speaker
1 x S/PDIF
Diagnostics : BIOS Selection, Clear CMOS
Legacy
1 x Serial
1 x Parallel
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC887 (7.1-Channel)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : Micro-ATX
Dimensions : 9.61 x 9.61" / 24.4 x 24.4 cm
Packaging Info
Package Weight : 1.975 lb
Box Dimensions (LxWxH) : 10.5 x 10.5 x 2.2"

GIGABYTE H370M DS3H Motherboard – LGA 1151, H370 Chipset, Micro-ATX, DDR4, USB 3.1 Gen 1

  (124 Total Review)
 Hot Selling

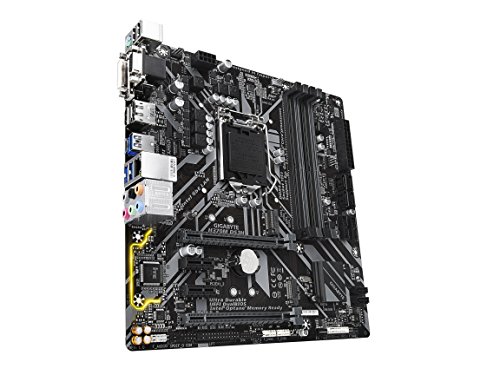

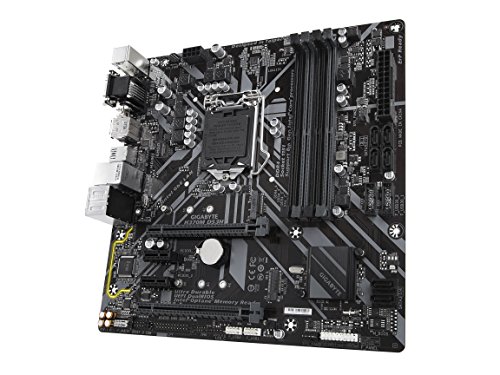

The GIGABYTE H370M DS3H is a micro-ATX motherboard built for users who want dependable performance for daily computing and gaming. The GIGABYTE H370M DS3H uses the LGA1151 socket, making it compatible with Intel 8th and 9th Gen Core, Pentium Gold, and Celeron processors. This gives users flexibility when choosing a GPU or upgrading in the future.

The board comes with 4 DDR4 DIMM slots, supporting up to 64GB of system memory. It uses dual-channel architecture, which provides smooth performance and multitasking. With multiple video output options, including HDMI, DVI-D, and VGA, this board supports a wide range of monitors and display setups. Also, the micro-ATX design makes this motherboard ideal for small PC cases.

Product Features

  • Socket 1151/Support 8th Gen Intel Core processors.
  • Dual Channel DDR4.
  • Sub 3. 1 Gen 1 (USB3. 0) Type A, Type C.
  • 4 DIMMs.
  • Relate ALC887.
