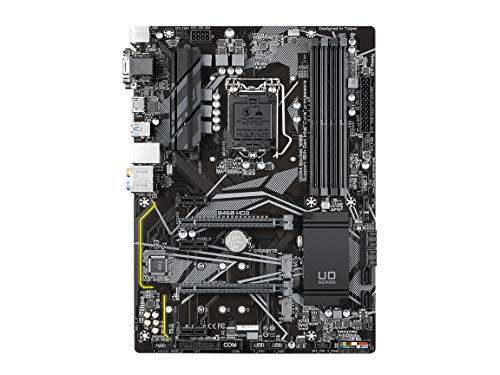

Gigabyte B460 HD3

Home Motherboard Gigabyte B460 HD3

Product Specification

CPU
Chipset : Intel B460
CPU Socket : LGA 1200
Back Panel I/O
USB
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Display
1 x HDMI
1 x DVI-D
1 x VGA
Audio : 6 x 3.5 mm
Ethernet / Controller : 1 x Realtek 8118 Gaming Gigabit
PS/2 : 1 x Combo
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2933 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2242, 2260, 2280 (PCIe (Unspecified))
1 x M Key 2242, 2260, 2280, 22110 (PCIe (Unspecified), SATA (Unspecified))
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
Multi-GPU Support : 2-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
3 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security : TPM Module
Audio : 1 x S/PDIF
Diagnostics : Clear CMOS
Legacy
1 x Parallel
1 x Serial
BIOS
ROM : 128 Mb
Audio
Audio Codec : Realtek ALC1200 (7.1-Channel)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12.0 x 8.9" / 30.5 x 22.5 cm
Packaging Info
Package Weight : 2.205 lb
Box Dimensions (LxWxH) : 12.8 x 10.4 x 2.3"

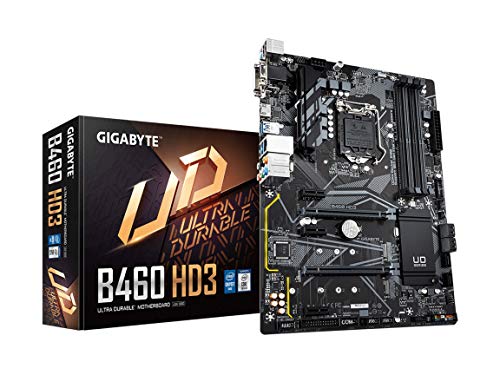

Gigabyte B460 HD3 (LGA1200/Intel/B460/ATX/Dual M.2/SATA 6Gb/s/USB 3.2 Gen 1/DDR4/Motherboard)

  (8 Total Review)
 Hot Selling

Product Features

  • Supports 10th Gen Intel Core processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • ALC1200 with High Quality Onboard Audio Design
  • GIGABYTE Patented DualBIOS Design
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Lightning-Fast Intel Thunderbolt 3 AIC Support
  • Intel Optane Memory Ready
$99.99

Product Specification

CPU
Chipset : Intel B460
CPU Socket : LGA 1200
Back Panel I/O
USB
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Display
1 x HDMI
1 x DVI-D
1 x VGA
Audio : 6 x 3.5 mm
Ethernet / Controller : 1 x Realtek 8118 Gaming Gigabit
PS/2 : 1 x Combo
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2933 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2242, 2260, 2280 (PCIe (Unspecified))
1 x M Key 2242, 2260, 2280, 22110 (PCIe (Unspecified), SATA (Unspecified))
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
Multi-GPU Support : 2-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
3 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security : TPM Module
Audio : 1 x S/PDIF
Diagnostics : Clear CMOS
Legacy
1 x Parallel
1 x Serial
BIOS
ROM : 128 Mb
Audio
Audio Codec : Realtek ALC1200 (7.1-Channel)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12.0 x 8.9" / 30.5 x 22.5 cm
Packaging Info
Package Weight : 2.205 lb
Box Dimensions (LxWxH) : 12.8 x 10.4 x 2.3"
