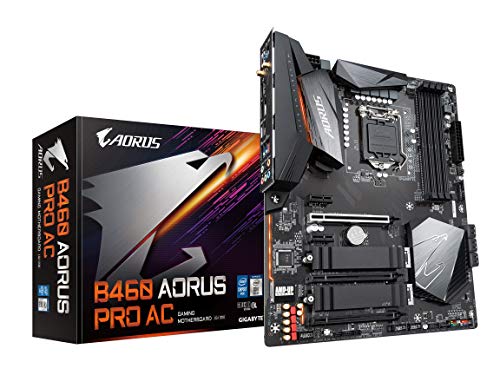

Gigabyte B460 AORUS PRO AC

Home Motherboard Gigabyte B460 AORUS PRO AC

Product Specification

CPU
Chipset : Intel B460
CPU Socket : LGA 1200
Back Panel I/O
USB
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Display
1 x DisplayPort
1 x HDMI
Audio : 6 x 3.5 mm
Ethernet / Controller : 1 x Intel 2.5Gigabit
PS/2 : 1 x Combo
Wi-Fi Antenna : 2 x Connector
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2933 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2242, 2260, 2280, 22110 (PCIe (Unspecified), SATA (Unspecified))
1 x M Key 2242, 2260, 2280, 22110 (PCIe (Unspecified), SATA (Unspecified))
Optane Memory Support : Yes
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
Multi-GPU Support : 2-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
3 x 4-Pin System
Liquid Cooling : 1 x Radiator Fan
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security : TPM Module
LED Header : 2 x RGB
Audio : 1 x S/PDIF
Diagnostics : Clear CMOS, Flash BIOS
BIOS
ROM : 128 Mb
Audio
Audio Codec : Realtek ALC1220-VB (7.1-Channel)
Wireless
Bluetooth : 5.0
Wi-Fi : Wi-Fi 5 (802.11ac)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12.0 x 9.6" / 30.5 x 24.4 cm
Packaging Info
Package Weight : 3.875 lb
Box Dimensions (LxWxH) : 13.4 x 10.8 x 3.3"

Gigabyte B460 AORUS PRO AC (LGA1200/Intel/B460/ATX/Dual M.2/SATA 6Gb/s/USB 3.2 Gen 2/Intel 802.11ac/2.5 GbE LAN/DDR4/Motherboard)

  (22 Total Review)
 Hot Selling

Product Features

  • Supports 10th Gen Intel Core processors
  • Direct 8 Phases Digital VRM Solution
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Advanced Thermal Design with Enlarged Heatsink
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
  • Intel 802.11ac Wave2 2T2R WIFI & BT 5
  • Blazing Fast Intel 2.5 GbE LAN with cFosSpeed
  • Intel USB 3.2 Gen2 Type-C Support
  • ALC 1220 120dB SNR HD Audio with WIMA & Nichicon MW Audio Capacitors
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
Out of Stock
Add Product to List View on Amazon
