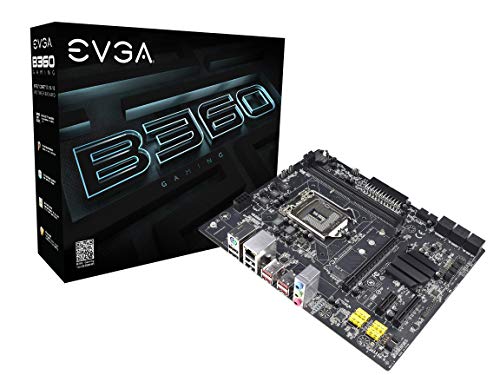

EVGA B360 Micro Gaming (112-CS-E365-KR)

Home Motherboard EVGA B360 Micro Gaming

Product Specification

CPU
Chipset : Intel B360
CPU Socket : LGA 1151
Back Panel I/O
USB
4 x USB 2.0 Type-A
4 x USB 3.1 Gen 2 Type-A
Thunderbolt : None
Display : None
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Intel i219V Gigabit
PS/2 : 1 x Combo
Memory
Memory Slots : 2 x 288-Pin
Memory Support : DDR4 2667 MHz
Maximum Capacity : 32 GB
Channel Architecture : Dual Channel
Storage Expansion
SATA : 6 x SATA III
M.2 : 1 x M Key 2280 (PCIe (Unspecified))
U.2 : None
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16
1 x PCIe x4
1 x PCIe x1
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 1 USB Type-A Port)
Multi-GPU Support : None
Air Cooling : 1 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin CPU
Security : TPM Module
Audio : None
Front Panel I/O
I/O Connection Headers : USB 3.1
Audio
Audio Codec : Realtek ALC888 (5.1-Channel)
Wireless
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : Micro-ATX
Dimensions : 8 x 9.6" / 203.20 x 243.84 mm
Packaging Info
Package Weight : 2.03 lb
Box Dimensions (LxWxH) : 13.3 x 10.5 x 3.2"

EVGA B360 Micro Gaming, LGA 1151, Intel B360, Nu Audio, SATA 6Gb/s, USB 3.1 Gen2, USB 3.1 Gen1, mATX, Intel Motherboard

  (2 Total Review)
 Hot Selling

Product Features

  • Intel B360 Chipset, Supports Intel Core 8th Generation Processor Family for LGA1151 socket
  • Micro ATX Form Factor
  • 2 DIMM Dual-Channel up to 32GB 2667+ MHz
  • 5 USB 2. 0 Ports (4x rear panel, 1x from 1 internal header), 2 USB 3. 1 Gen1Ports (from internal header) , 4 USB 3. 1 Gen2 Ports (4x rear panel Type-A)
  • 6 SATA, 2 M. 2 Key-M 80mm up to 32Gbps, 1 M. 2 Key-E 32mm, 1x Intel i219 Gigabit NIC (10/100/1000)
  • Get Grip Game + EVGA Vehicle Skin w/ purchase, redeemed at EVGA website, while supplies last
