ASUS TUF GAMING H470-PRO (WI-FI)

Home Motherboard ASUS TUF GAMING H470-PRO (WI-FI)

Product Specification

CPU
Chipset : Intel H470
CPU Socket : LGA 1200

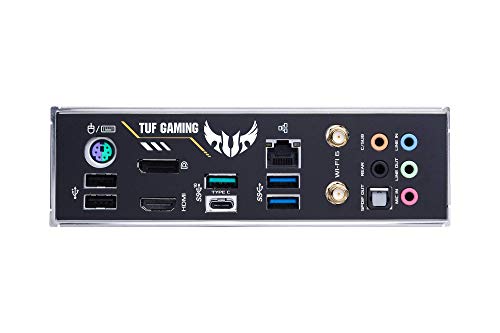

Back Panel I/O
USB
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
2 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Display
1 x DisplayPort
1 x HDMI
Audio : 5 x 3.5 mm
Ethernet / Controller : 1 x Intel I219-V Gigabit
PS/2 : 1 x Combo
Wi-Fi Antenna : 2 x Connector
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2800, 2933 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 5 x SATA III
M.2
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x4
4 x PCIe x1
USB
1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 1 USB Type-A Port)
Multi-GPU Support : 2-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
4 x 4-Pin System
Liquid Cooling : 1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
LED Header : 2 x RGB
Diagnostics : Clear CMOS
Add-On : 1 x Thunderbolt Card Header
Legacy : 1 x Serial
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP
Audio
Audio Codec : Realtek ALC S1200A (7.1-Channel)
Wireless
Wi-Fi : Wi-Fi 6 (802.11ax)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 12 x 9.6" / 30.5 x 24.4 cm
Packaging Info
Package Weight : 3.42 lb
Box Dimensions (LxWxH) : 13.4 x 10.8 x 2.8"

ASUS TUF Gaming H470-PRO WiFi 6 LGA1200 (Intel 10th Gen) ATX Gaming Motherboard (WiFi 6, Intel 1Gb LAN, Front Panel TypeC Connector, Addressable Gen 2 RGB Header and Aura Sync)

  (134 Total Review)
 Hot Selling

Product Features

  • Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
  • Comprehensive cooling: VRM heatsink, M. 2 heatsink, PCH heatsink
  • Made for online gaming: Intel WiFi 6 802. 11ax, Intel 1Gb Lan with TUF LANGuard and Turbo LAN technology
  • Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable gen 2 RGB header
  • Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
  • Enhanced power solution: 10 power stages, military-grade TUF components, and Digi+ VRM for maximum durability
