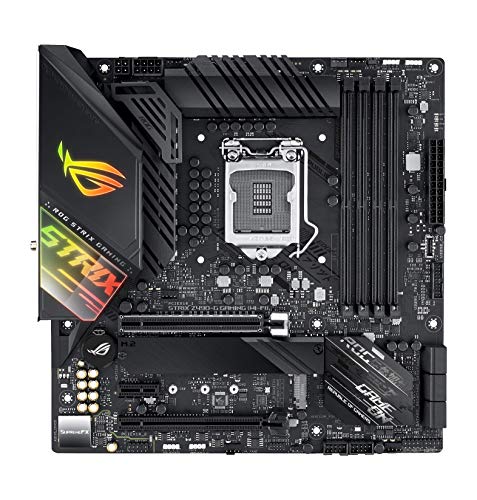

ASUS ROG STRIX Z490-G GAMING(WI-FI)

Home Motherboard ASUS ROG STRIX Z490-G GAMING(WI-FI)

Product Specification

CPU
Chipset : Intel Z490
CPU Socket : LGA 1200

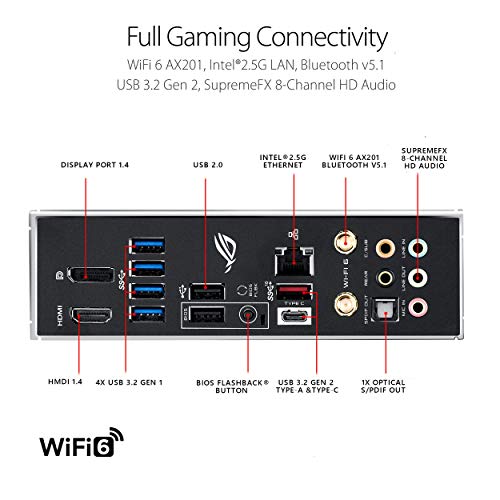

Back Panel I/O
USB
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt : None
Display
1 x DisplayPort 1.4Output
1 x HDMI 1.4bOutput
Audio
5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller : 1 x Intel I225-V 2.5Gigabit
Wi-Fi Antenna : 2 x Connector
Buttons : BIOS Flashback
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified))
U.2 : None
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x4 (x2 mode)
1 x PCIe 3.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support : 2-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
2 x 4-Pin Assistant
2 x 4-Pin System
1 x Thermal Sensor
Liquid Cooling : 1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security : Chassis Intrusion
LED Header : 4 x RGB
Diagnostics : Clear CMOS, CPU Overclock, Flash BIOS
BIOS
ROM : 192 Mb
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2
Audio
Audio Codec : SupremeFX S1220A (7.1-Channel)
Wireless
Bluetooth : 5.1
Wi-Fi : Wi-Fi 6 (802.11ax) (MU-MIMO)
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : Micro-ATX
Dimensions : 9.61 x 9.61" / 24.4 x 24.4 cm
Packaging Info
Package Weight : 3.775 lb
Box Dimensions (LxWxH) : 11.1 x 10.5 x 2.9"

ASUS ROG Strix Z490-G Gaming (WiFi 6) Z490 LGA 1200 (Intel 10th Gen) SFF Micro ATX Gaming Motherboard (12+2 Power Stages, Intel 2.5 Gb Ethernet, Bluetooth v5.1 and Aura Sync)

  (299 Total Review)
 Hot Selling

Product Features

  • Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
  • Robust Power Solution: 12+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance to the limit
  • Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, M. 2 heatsink, hybrid fan headers and Fan Xpert 4 utility
  • High-performance Gaming Networking: On-board Intel 2. 5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI 1. 4 and DisplayPort 1. 4 output, and featuring dual M. 2, front panel USB 3. 2 Gen 2 Type-C connector
  • Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action
