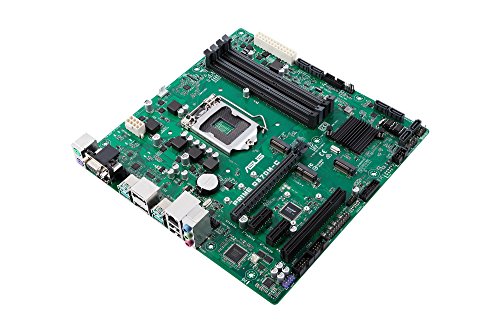

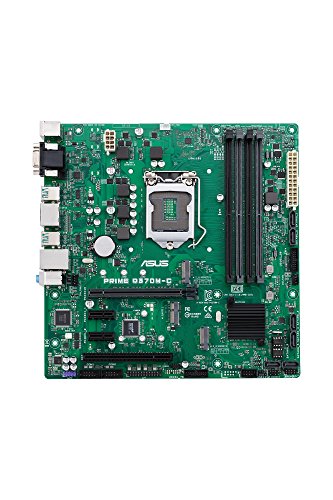

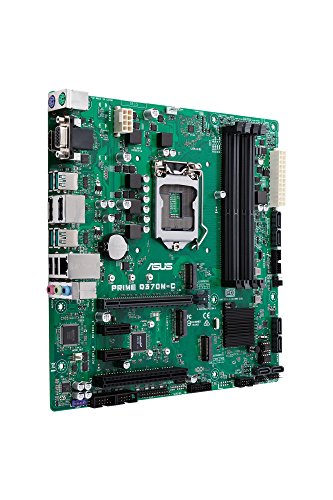

ASUS PRIME Q370M (PRIME Q370M-C/CSM)

Home Motherboard ASUS PRIME Q370M

Product Specification

CPU
Chipset : Intel Q370
CPU Socket : LGA 1151

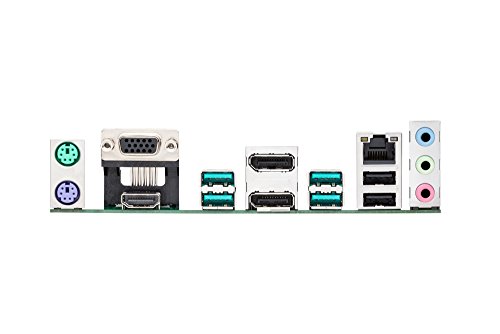

Back Panel I/O
USB
4 x USB 3.1 Gen 2 Type-A
2 x USB 2.0 Type-A
Thunderbolt : None
Display
2 x DisplayPort
1 x HDMI
1 x VGA
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Intel I219LM Gigabit LAN
PS/2 : 2 x PS/2
Wi-Fi Antenna : 1 x Connector
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666 MHz
Maximum Capacity : 64 GB
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280 (PCIe (Unspecified))
1 x E Key
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10 (M.2)
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
1 x PCI
USB
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Power Connectors
1 x 8-Pin CPU
1 x 24-Pin Mainboard
Security : Chassis Intrusion, TPM Module
Audio : 3 x Speaker
BIOS
ROM : 192 Mb
Audio
Audio Codec : Realtek ALC887 (8-Channel)
Wireless
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10
Physical
Form Factor : Micro-ATX
Dimensions : 9.6 x 9.6" / 24.38 x 24.38 cm

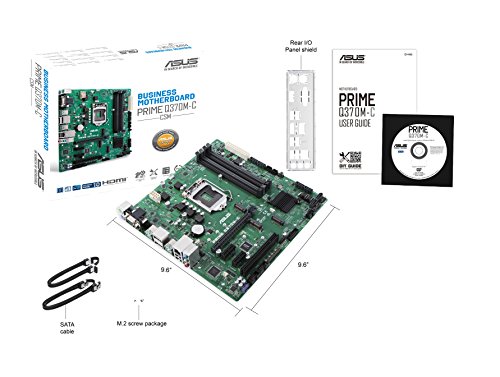

Packaging Info
Package Weight : 1.895 lb
Box Dimensions (LxWxH) : 10.7 x 10.4 x 2.2"

ASUS Prime Q370M-C/CSM LGA1151 (300 Series) DDR4 DP HDMI VGA SATA 6GB/s USB 3.1 Gen2 MicroATX CSM Motherboard

  (5 Total Review)
 Hot Selling

Product Features

  • Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with SATA 6.0 GB/s, Gigabit LAN, COM header and TPM IC onboard
  • ASUS Corporate Stable Model complimentary advance replacement and long lifecycle
  • ASUS Shield keeps your hardware and data protected with a self-recovering BIOS and anti-moisture coating
  • Fixed-position and color-coded connections allow for easy identification and assembly to optimize production line installation
  • Lpc Debug header streamlines motherboard troubleshooting
