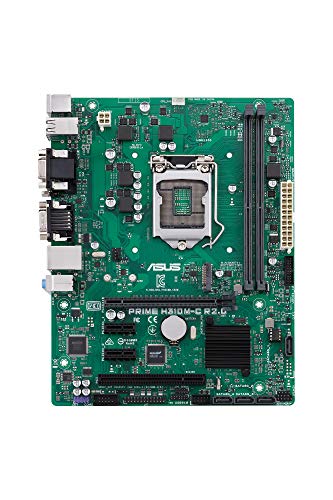

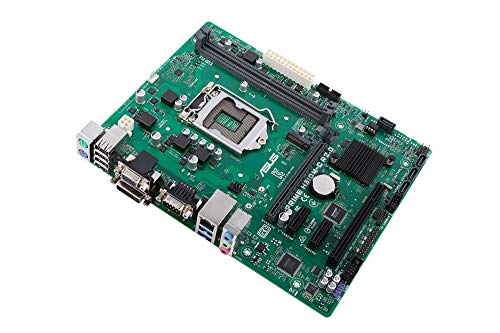

ASUS PRIME H310M-C R2.0/CSM

Home Motherboard ASUS PRIME H310M-C R2.0/CSM

Product Specification

CPU
Chipset : Intel H310
CPU Socket : LGA 1151
Back Panel I/O
USB
2 x USB 3.1 Gen 1 Type-A
4 x USB 2.0 Type-A
Thunderbolt : None
Display
1 x DVI-D
1 x VGA
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Realtek 8111H Gigabit
PS/2 : 2 x PS/2
Legacy : 1 x Serial
Memory
Memory Slots : 2 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666 MHz
Maximum Capacity : 32 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 4 x SATA III
M.2 : 1 x M Key 2260, 2280 (PCIe (Unspecified), SATA (Unspecified))
U.2 : None
RAID Support : None
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16
2 x PCIe 2.0 x1
1 x PCI
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support : None
Air Cooling
1 x 4-Pin CPU
1 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 4-Pin CPU
Security : Chassis Intrusion, TPM Module
Audio : 1 x Speaker
Diagnostics : Clear CMOS
Legacy
1 x Serial
1 x Parallel
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP
Audio
Audio Codec : Realtek ALC887 (8-Channel)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : Micro-ATX
Dimensions : 9.6 x 7.6" / 24.38 x 19.30 cm
Packaging Info
Package Weight : 1.755 lb
Box Dimensions (LxWxH) : 10.65 x 10.5 x 2.2"

ASUS LGA1151 (300 Series) DDR4 M.2 VGA mATX Motherboard Motherboards Prime H310M-C R2.0/CSM

  (4 Total Review)
 Hot Selling

Product Features

  • Cpu Type: LGA1151 socket for 8th generation Intel Core i7/i5/i3/ Pentium/ Celeron processors
  • Chipset: Intel H310
  • Memory: Standardddr4 2666/ 2400/ 2133 MHz, Non-ECC, Un-buffered Memory
  • Onboard video Chipset: integrated graphics processor - Intel HD Graphics Support multi-vga output support: DVI-D/D-Sub Ports
  • Maximum memory Supported: 32GB, Channel supported: Dual Channel
$76.99

Product Specification

CPU
Chipset : Intel H310
CPU Socket : LGA 1151
Back Panel I/O
USB
2 x USB 3.1 Gen 1 Type-A
4 x USB 2.0 Type-A
Thunderbolt : None
Display
1 x DVI-D
1 x VGA
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Realtek 8111H Gigabit
PS/2 : 2 x PS/2
Legacy : 1 x Serial
Memory
Memory Slots : 2 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666 MHz
Maximum Capacity : 32 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 4 x SATA III
M.2 : 1 x M Key 2260, 2280 (PCIe (Unspecified), SATA (Unspecified))
U.2 : None
RAID Support : None
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16
2 x PCIe 2.0 x1
1 x PCI
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support : None
Air Cooling
1 x 4-Pin CPU
1 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 4-Pin CPU
Security : Chassis Intrusion, TPM Module
Audio : 1 x Speaker
Diagnostics : Clear CMOS
Legacy
1 x Serial
1 x Parallel
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP
Audio
Audio Codec : Realtek ALC887 (8-Channel)
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : Micro-ATX
Dimensions : 9.6 x 7.6" / 24.38 x 19.30 cm
Packaging Info
Package Weight : 1.755 lb
Box Dimensions (LxWxH) : 10.65 x 10.5 x 2.2"
