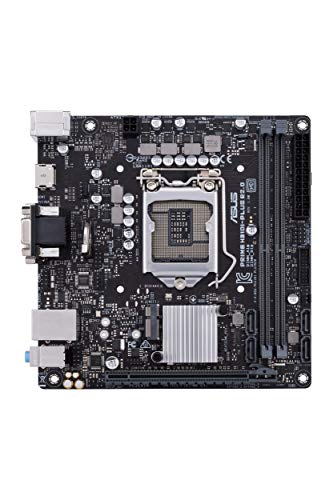

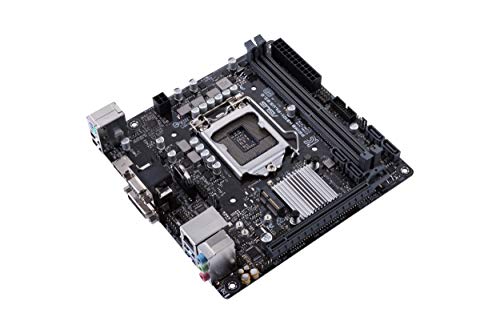

ASUS PRIME H310I-PLUS (PRIME H310I-PLUS R2.0/CSM)

Home Motherboard ASUS PRIME H310I-PLUS

Product Specification

CPU
Chipset : Intel H310
CPU Socket : LGA 1151
Back Panel I/O
USB
2 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt : None
Display
1 x HDMI 1.4b
1 x DVI-D
1 x VGA
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Realtek RTL8111H Gigabit
PS/2 : 1 x Combo
Memory
Memory Slots : 2 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666 MHz
Maximum Capacity : 32 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 4 x SATA III
M.2 : 1 x M Key 2260, 2280 (PCIe 2.0 x4, SATA III)
U.2 : None
Optane Memory Support : No
RAID Support : None
Internal I/O
Expansion Slots : 1 x PCIe 3.0 x16 (x16 mode)
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support : None
Air Cooling
1 x 4-Pin CPU
2 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 4-Pin CPU
Security : Chassis Intrusion, TPM Module
Audio
1 x S/PDIF
1 x Speaker
Diagnostics : Clear CMOS
Legacy : 1 x Serial
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP
Audio
Audio Codec : Realtek ALC887 (8-Channel)
Wireless
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : Mini-ITX
Dimensions : 6.7 x 6.7" / 17.02 x 17.02 cm
Packaging Info
Package Weight : 1.46 lb
Box Dimensions (LxWxH) : 9 x 7.4 x 2.45"

ASUS Prime H310I-PLUS CSM LGA1151 (Intel 8th Gen) DDR4 M.2 VGA DVI-D H310 Mitx Motherboard Motherboards Prime H310I-PLUS R2.0/CSM

  (104 Total Review)
 Hot Selling

Product Features

  • CPU Type: LGA1151 socket for 8th Generation Intel Core i7/i5/i3/ Pentium / Celeron Processors
  • Memory Standard: DDR4 2666/ 2400/ 2133 MHz, non-ECC, un-buffered memory
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
Out of Stock
Add Product to List View on Amazon

Product Specification

CPU
Chipset : Intel H310
CPU Socket : LGA 1151
Back Panel I/O
USB
2 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt : None
Display
1 x HDMI 1.4b
1 x DVI-D
1 x VGA
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Realtek RTL8111H Gigabit
PS/2 : 1 x Combo
Memory
Memory Slots : 2 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666 MHz
Maximum Capacity : 32 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC Unbuffered
Storage Expansion
SATA : 4 x SATA III
M.2 : 1 x M Key 2260, 2280 (PCIe 2.0 x4, SATA III)
U.2 : None
Optane Memory Support : No
RAID Support : None
Internal I/O
Expansion Slots : 1 x PCIe 3.0 x16 (x16 mode)
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support : None
Air Cooling
1 x 4-Pin CPU
2 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 4-Pin CPU
Security : Chassis Intrusion, TPM Module
Audio
1 x S/PDIF
1 x Speaker
Diagnostics : Clear CMOS
Legacy : 1 x Serial
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP
Audio
Audio Codec : Realtek ALC887 (8-Channel)
Wireless
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : Mini-ITX
Dimensions : 6.7 x 6.7" / 17.02 x 17.02 cm
Packaging Info
Package Weight : 1.46 lb
Box Dimensions (LxWxH) : 9 x 7.4 x 2.45"
