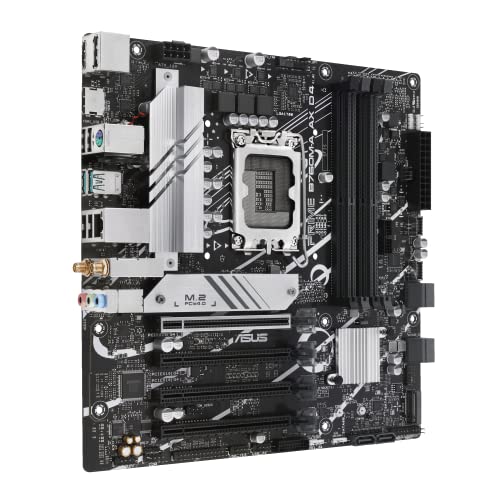

ASUS PRIME B760M-A AX D4

Home Motherboard ASUS PRIME B760M-A AX D4

Product Specification

General
Brand : ASUS
Model : PRIME B760M-A AX D4
Socket Type : LGA 1700
Chipset : Intel B760
Form Factor : Micro ATX
Memory Support
Memory Type : DDR4
RAM Quantity : 4 (Quad Channel)
Max Memory Support : 128 GB
Memory Pin : 288-Pin
Storage Expansion
SATA : 4 x SATA 6.0 Gb/s
M.2 : 2 x 2242/2260/2280 M-key
RAID Support : Yes
I/O Slots
USB : 2 x USB 2.0, 2 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2
PCIe Slots : 4 x PCIe x16
Ethernet : 1 x 2.5 Gb/s
Wireless
Wireless Networking : Wi-Fi 6

ASUS PRIME B760M-A AX D4 Intel B760 mATX motherboard (DisplayPort, Dual HDMI, rear USB 3.2 Gen 2,front USB 3.2 Gen 1 Type-C, Aura Sync)

  (0 Total Review)
 Hot Selling

Product Features

  • Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
  • Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
  • CEC Tier II ready
