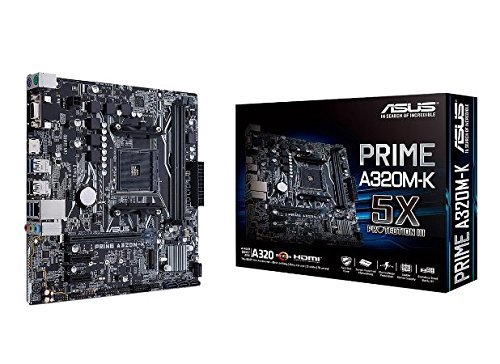

ASUS PRIME A320M-K (90MB0TV0-M0EAY0)

Home Motherboard ASUS PRIME A320M-K

Product Specification

CPU
Chipset : AMD A320
CPU Socket : AM4
Back Panel I/O
USB
4 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A
Display
1 x HDMI 1.4b
1 x VGA
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Realtek 8111H Gigabit
PS/2 : 2 x PS/2
Memory
Memory Slots : 2 x 288-Pin
Memory Support : DDR4 2133, 2400, 2666, 2933, 3200 MHz
Maximum Capacity : 32 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC Unbuffered
Storage Expansion
SATA : 4 x SATA III
M.2 : 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
U.2 : None
RAID Support : RAID 0, 1, 10
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16
2 x PCIe 2.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support : None
Air Cooling
1 x 4-Pin CPU
1 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 4-Pin CPU
LED Header : None
Audio
1 x S/PDIF
1 x Speaker
Diagnostics : Clear CMOS
Front Panel I/O
I/O Connection Headers : AAFP
Audio
Audio Codec : Realtek ALC887 (8-Channel)
Wireless
Wi-Fi : None
Physical
Form Factor : Micro-ATX
Dimensions : 8.9 x 8.7" / 22.6 x 22.1 cm
Packaging Info
Package Weight : 1.85 lb
Box Dimensions (LxWxH) : 10.63 x 10.394 x 1.969"

ASUS PRIME A320M-K AMD Ryzen AM4 DDR4 HDMI VGA M.2 USB 3.1 Micro-ATX Motherboard

  (3367 Total Review)
 Hot Selling

Product Features

  • Powered by AMD Ryzen AM4 7th Generation Athlon and HD 2000 series processors to maximize connectivity and speed with NVMe M 2 support for 32GB of DDR4 USB 3 0 and Gigabit LAN
  • 5x Protection III Hardware-level safeguards provide component longevity and reliability
  • Patent-pending SafeSlot Core fortified PCIe slot prevents damage from heavyweight GPUs
  • Fan Xpert delivers advanced fan controls for optimized cooling
  • Industry-leading 8-channel HD audio driven by Japanese capacitors features an onboard LED-illuminated design Operating System Support Windows 10
  • System Ram Type: Ddr4 Sdram
