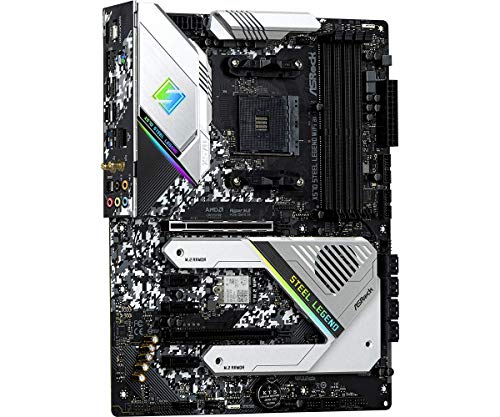

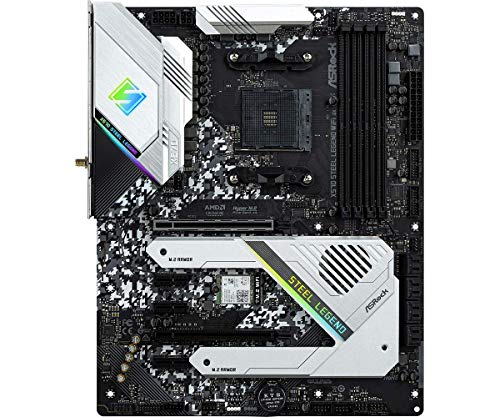

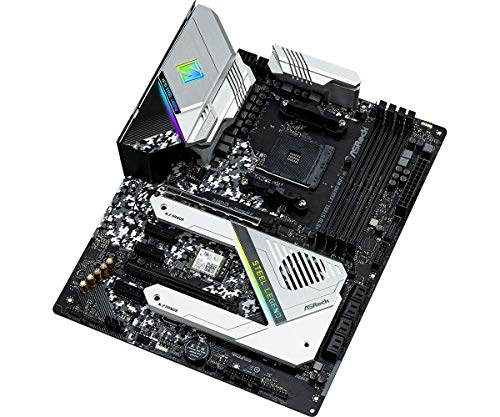

ASRock X570 Steel Legend WiFi AX (X570 STEEL LEGEND WIFI AX)

Home Motherboard ASRock X570 Steel Legend WiFi AX

Product Specification

CPU
Chipset : AMD X570
CPU Socket : AM4

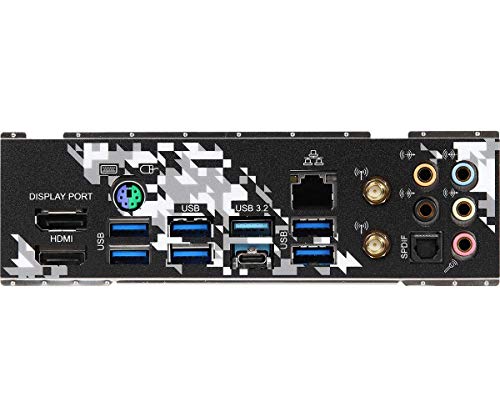

Back Panel I/O
USB
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
6 x USB 3.1 / USB 3.2 Gen 1 Type-A
Thunderbolt : None
Display
1 x DisplayPort 1.2
1 x HDMI
Audio
1 x S/PDIF
5 x 3.5 mm
Ethernet / Controller : 1 x Intel I211AT Gigabit
PS/2 : 1 x PS/2
Wi-Fi Antenna : 2 x Connector
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4666 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC Unbuffered
Storage Expansion
SATA : 8 x SATA III
M.2
1 x M Key 2230, 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4)
1 x M Key 2230, 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III)
U.2 : None
RAID Support : RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots
2 x PCIe 4.0 x16
3 x PCIe 4.0 x1
USB
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support : Quad-GPU AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
4 x 4-Pin System
Liquid Cooling
1 x 4-Pin Pump
4 x Radiator Fan
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security : TPM Module
LED Header : 2 x RGB
Audio : 1 x Speaker
Add-On : 1 x Thunderbolt Card Header
Legacy : 1 x Serial
BIOS
ROM : 256 Mb
Front Panel I/O
I/O Connection Headers : USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC1220 (7.1-Channel)
Wireless
Bluetooth : 5.0
Wi-Fi : Wi-Fi 6 (802.11ax) (MU-MIMO)
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 9.6 x 12.0" / 24.4 x 30.5 cm

ASRock X570 Steel Legend WiFi AX ATX Motherboard – AMD AM4 Socket, X570 Chipset, Supports DDR4 Memory, Dual M.2 Slots, Wi-Fi 6 (802.11ax), SATA 6Gb/s, PCIe 4.0, USB 3.2 Gen2, HDMI Output

  (137 Total Review)
 Hot Selling

The ASRock X570 Steel Legend WiFi AX is a powerful and durable ATX motherboard built for AMD Ryzen processors with the AM4 socket. This motherboard is made for AMD Ryzen 3000 and 5000 series processors using the AM4 socket and X570 chipset. It supports multi-core CPUs, giving you fast performance for gaming, content creation, and multitasking.

The board offers USB 3.2 Gen2 ports, including Type-C, for high-speed data transfer. Also, being a full-size ATX motherboard, it gives you room for extra storage, GPUs, and other expansion cards. You also get enough fan headers, RGB headers, and USB ports to customize your system the way you want it. Overall, this board is surely a great pick.

Product Features

  • Supports AMD AM4 socket Ryzen 2000 and 3000 Series processors.
  • 10 power Phase design.
  • Supports DDR4 4666+ (OC).
  • 2 PCIe 4.0 x16, 3 PCIe 4.0 x1.
  • Amd Quad CrossFireX and CrossFireX.
  • Full-size ATX.
  • PCIe 4.0 Support.
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
Out of Stock
Add Product to List View on Amazon

Product Specification

CPU
Chipset : AMD X570
CPU Socket : AM4
Back Panel I/O
USB
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
6 x USB 3.1 / USB 3.2 Gen 1 Type-A
Thunderbolt : None
Display
1 x DisplayPort 1.2
1 x HDMI
Audio
1 x S/PDIF
5 x 3.5 mm
Ethernet / Controller : 1 x Intel I211AT Gigabit
PS/2 : 1 x PS/2
Wi-Fi Antenna : 2 x Connector
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4666 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : Non-ECC, ECC Unbuffered
Storage Expansion
SATA : 8 x SATA III
M.2
1 x M Key 2230, 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4)
1 x M Key 2230, 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III)
U.2 : None
RAID Support : RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots
2 x PCIe 4.0 x16
3 x PCIe 4.0 x1
USB
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support : Quad-GPU AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
4 x 4-Pin System
Liquid Cooling
1 x 4-Pin Pump
4 x Radiator Fan
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security : TPM Module
LED Header : 2 x RGB
Audio : 1 x Speaker
Add-On : 1 x Thunderbolt Card Header
Legacy : 1 x Serial
BIOS
ROM : 256 Mb
Front Panel I/O
I/O Connection Headers : USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC1220 (7.1-Channel)
Wireless
Bluetooth : 5.0
Wi-Fi : Wi-Fi 6 (802.11ax) (MU-MIMO)
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 9.6 x 12.0" / 24.4 x 30.5 cm
