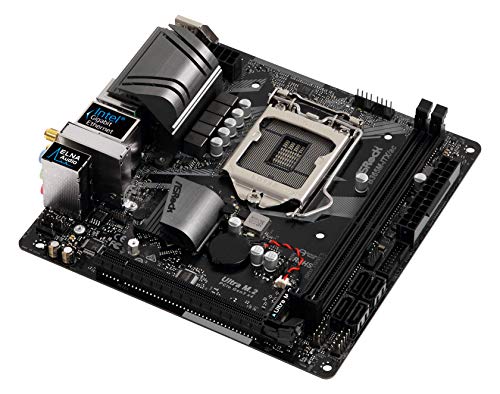

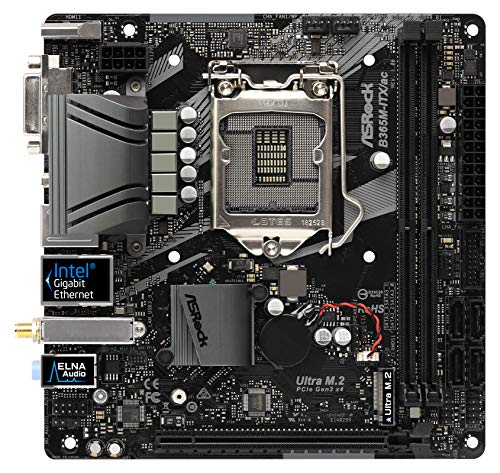

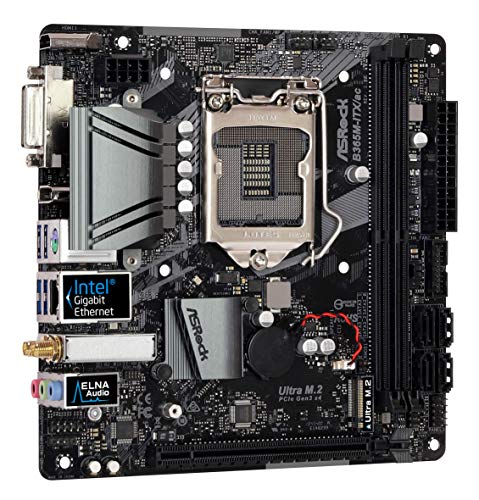

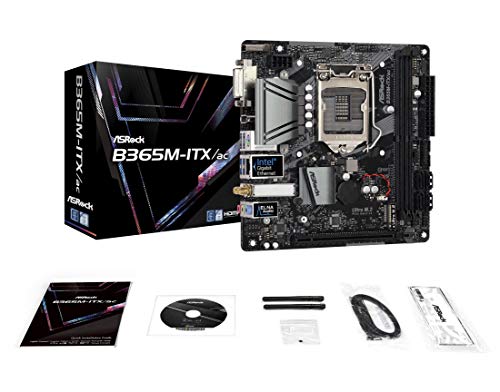

ASRock B365M-ITX/ac

Home Motherboard ASRock B365M-ITX/ac

Product Specification

CPU
Chipset : Intel B365
CPU Socket : LGA 1151
Back Panel I/O
USB : 4 x USB 3.1 / USB 3.2 Gen 1 Type-A
Thunderbolt : None
Display
1 x HDMI 1.4Output
1 x DisplayPort 1.2Output
1 x DVI-I Output
Audio : 3 x 3.5 mm
Ethernet / Controller : 1 x Intel I219V Gigabit
PS/2 : 1 x PS/2
Wi-Fi Antenna : 2 x Connector
Memory
Memory Slots : 2 x 288-Pin
Memory Support : DDR4 2666 MHz
Maximum Capacity : 32 GB
Channel Architecture : Dual Channel
ECC Support : ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA : 4 x SATA III
M.2 : 1 x M Key 2280, 22110 (PCIe 3.0 x4, SATA III)
U.2 : None
Optane Memory Support : Yes
RAID Support : RAID 0, 1, 5, 10
Internal I/O
Expansion Slots : 1 x PCIe 3.0 x16
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
1 x USB 2.0 Header (Supports 2 USB Type-A Port)
Multi-GPU Support : None
Air Cooling
1 x 4-Pin CPU
2 x 4-Pin System
Liquid Cooling
1 x 4-Pin Pump
1 x Radiator Fan
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security : Chassis Intrusion
Audio : 1 x Speaker
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC887 (7.1-Channel)
Wireless
Bluetooth : 4.2
Wi-Fi : Wi-Fi 5 (802.11ac)
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : Mini-ITX
Dimensions : 6.7 x 6.7" / 17.02 x 17.02 cm
Packaging Info
Package Weight : 1.81 lb
Box Dimensions (LxWxH) : 11 x 8.4 x 2.3"

ASRock B365M-ITX/ac LGA1151/ Intel B365/ DDR4/ SATA3&USB3.1/ M.2/ WiFi/A&GbE/Mini-Itx Motherboard

  (141 Total Review)
 Hot Selling

Product Features

  • Supports 9th and 8th Gen Intel Core processors (Socket 1151)
  • DDR4 2666/ 2400/ 2133
  • Intel B365
  • Not backward compatible with older generation of LGA 1151 CPUs
