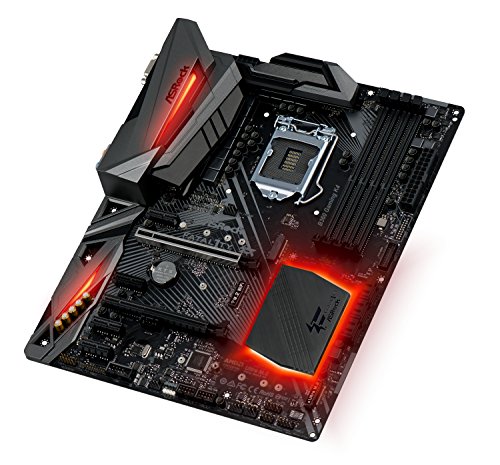

ASRock B360 GAMING K4

Home Motherboard ASRock B360 GAMING K4

Product Specification

CPU
Chipset : Intel B360
CPU Socket : LGA 1151
Back Panel I/O
USB
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
2 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt : None
Display
1 x HDMI Output
1 x DisplayPort 1.2Output
1 x VGA Output
Audio : 5 x 3.5 mm
Ethernet / Controller : 1 x Intel I219V Gigabit
PS/2 : 1 x PS/2
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2666 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2230, 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
1 x M Key 2230, 2242, 2260, 2280 (PCIe 3.0 x2)
U.2 : None
Optane Memory Support : Yes
Internal I/O
Expansion Slots
2 x PCIe 3.0 x16
4 x PCIe 3.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support : Quad-GPU AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
3 x 4-Pin System
Liquid Cooling
1 x 4-Pin Pump
3 x Radiator Fan
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security : Chassis Intrusion, TPM Module
LED Header : 2 x RGB
Audio : 1 x Speaker
Add-On : 1 x Thunderbolt Card Header
Legacy : 1 x Serial
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC1220 (7.1-Channel)
Wireless
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 9.6 x 12" / 24.38 x 30.48 cm
Packaging Info
Package Weight : 4.045 lb
Box Dimensions (LxWxH) : 13.8 x 12.3 x 3.6"

ASRock B360 Gaming K4 LGA1151/Intel B360/DDR4/Quad CrossFireX/SATA3&USB3.1/M.2/GbE/ATX Motherboard

  (7 Total Review)
 Hot Selling

Product Features

  • Supports 8th Generation Intel Core Processors
  • Supports CPU up to 95W
  • Digi Power design
  • 4x DDR4-2666/2400/2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
  • Supports AMD Quad CrossFireX, CrossFireX Technology
$124.82

Product Specification

CPU
Chipset : Intel B360
CPU Socket : LGA 1151
Back Panel I/O
USB
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
2 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt : None
Display
1 x HDMI Output
1 x DisplayPort 1.2Output
1 x VGA Output
Audio : 5 x 3.5 mm
Ethernet / Controller : 1 x Intel I219V Gigabit
PS/2 : 1 x PS/2
Memory
Memory Slots : 4 x 288-Pin
Memory Support : DDR4 2666 MHz
Maximum Capacity : 128 GB
Channel Architecture : Dual Channel
ECC Support : ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA : 6 x SATA III
M.2
1 x M Key 2230, 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
1 x M Key 2230, 2242, 2260, 2280 (PCIe 3.0 x2)
U.2 : None
Optane Memory Support : Yes
Internal I/O
Expansion Slots
2 x PCIe 3.0 x16
4 x PCIe 3.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support : Quad-GPU AMD CrossFireX
Air Cooling
1 x 4-Pin CPU
3 x 4-Pin System
Liquid Cooling
1 x 4-Pin Pump
3 x Radiator Fan
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security : Chassis Intrusion, TPM Module
LED Header : 2 x RGB
Audio : 1 x Speaker
Add-On : 1 x Thunderbolt Card Header
Legacy : 1 x Serial
BIOS
ROM : 128 Mb
Front Panel I/O
I/O Connection Headers : AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec : Realtek ALC1220 (7.1-Channel)
Wireless
Module Support : 1 E Key M.2
Software
Supported Operating Systems : Windows 10 (64-Bit)
Physical
Form Factor : ATX
Dimensions : 9.6 x 12" / 24.38 x 30.48 cm
Packaging Info
Package Weight : 4.045 lb
Box Dimensions (LxWxH) : 13.8 x 12.3 x 3.6"
