NZXT H510i (CA-H510I-W1)

Home Case NZXT H510i

Product Specification

Compatibility
Motherboard Support : ATX, Micro-ATX, Mini-ITX
External Drive Bays : None
Internal Drive Bays
3 x 3.5"
3 x 2.5"
Additional Drive Mounting
2 x 2.5" (Bottom)
2 x 2.5" (Motherboard Tray)
Expansion Slots : 7 x Full Height + 2
Maximum GPU Length : 15.00" / 381 mm
CPU Cooler Height : 6.50" / 165 mm
Supported PSU Size : ATX
Cooling
Fan Mounting (Front)
2 x 120 mm
Or
2 x 140 mm
Fan Mounting (Rear)
1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Side) : None
Fan Mounting (Top)
1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Bottom) : None
Fans Included (Rear) : 1 x 120 mm (1200 Variable rpm)
Fans Included (Top) : 1 x 120 mm (1200 Variable rpm)
Maximum Radiator Size (Front) : 280 mm
Maximum Radiator Size (Rear) : 120 mm
Fan Mounting (Internal) : None
Noise Level : 28 dBA
Fan Controller Included : Yes
Filter Locations : Bottom, Front
I/O
Connections
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2)
1 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
Audio Connections : 1 x 3.5 mm Input/Output
Display Connections : None
Physical
Windowed Panel : Yes
Material : Tempered Glass, Steel
Built-In Lighting : No
Cable Management Space : 0.91" / 23 mm
Dimensions (W x H x D) : 8.27 x 18.11 x 16.85" / 210 x 460 x 428 mm
Weight : 14.99 lb / 6.8 kg
Warranty Length : Limited 2-Year Warranty
Packaging Info
Package Weight : 18.605 lb
Box Dimensions (LxWxH) : 20.2 x 19.6 x 10.6"

NZXT H510i Compact ATX Mid -Tower PC Gaming Case - Front I/O USB Type-C Port - Vertical GPU Mount - Tempered Glass Side Panel - Integrated RGB Lighting

  (29920 Total Review)
 Hot Selling

Product Features

  • New features: Front I/O USB Type-C Port, Vertical GPU Mount, Tempered glass side panel with single screw installation, and upgraded Smart Device V2

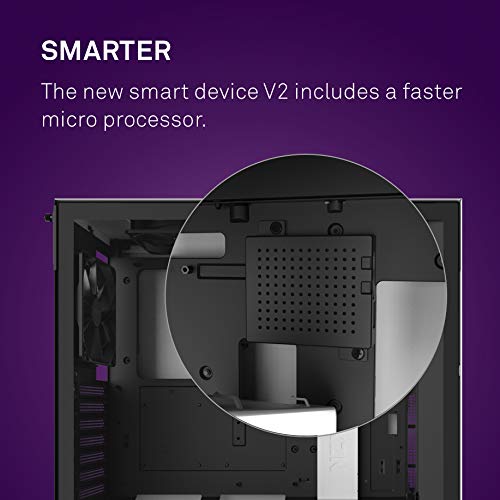

  • Smart device v2: Includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB lighting channels and three fan channels that support either voltage regulated or PWM fans
  • Vertical GPU mounting: Show off your graphic card with a built-in mounting bracket for installing your GPU vertically PCIe riser card not included

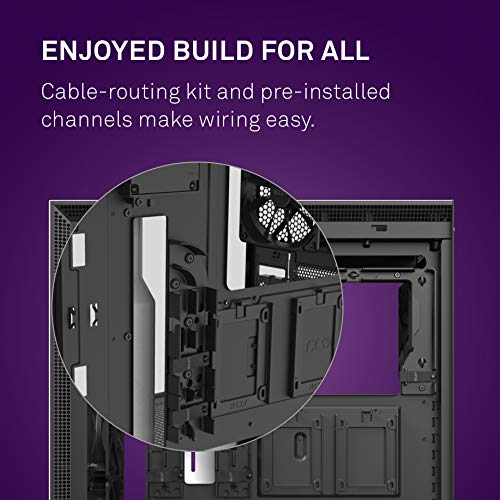

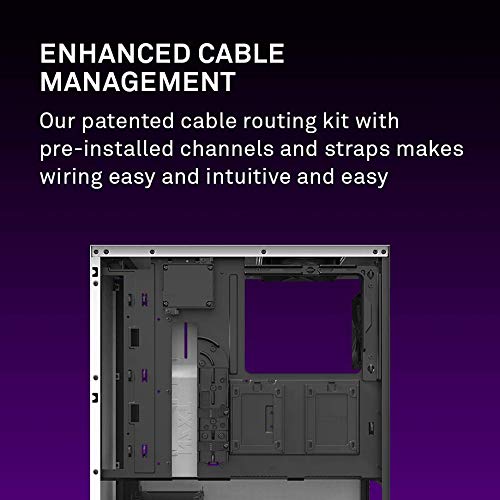

  • Enhanced cable management: Our patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive
  • Motherboard support: Mini-ITX, MicroATX, and ATX
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
$120.58
Add Product to List View on Amazon

Product Specification

Compatibility
Motherboard Support : ATX, Micro-ATX, Mini-ITX
External Drive Bays : None
Internal Drive Bays
3 x 3.5"
3 x 2.5"
Additional Drive Mounting
2 x 2.5" (Bottom)
2 x 2.5" (Motherboard Tray)
Expansion Slots : 7 x Full Height + 2
Maximum GPU Length : 15.00" / 381 mm
CPU Cooler Height : 6.50" / 165 mm
Supported PSU Size : ATX
Cooling
Fan Mounting (Front)
2 x 120 mm
Or
2 x 140 mm
Fan Mounting (Rear)
1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Side) : None
Fan Mounting (Top)
1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Bottom) : None
Fans Included (Rear) : 1 x 120 mm (1200 Variable rpm)
Fans Included (Top) : 1 x 120 mm (1200 Variable rpm)
Maximum Radiator Size (Front) : 280 mm
Maximum Radiator Size (Rear) : 120 mm
Fan Mounting (Internal) : None
Noise Level : 28 dBA
Fan Controller Included : Yes
Filter Locations : Bottom, Front
I/O
Connections
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2)
1 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
Audio Connections : 1 x 3.5 mm Input/Output
Display Connections : None
Physical
Windowed Panel : Yes
Material : Tempered Glass, Steel
Built-In Lighting : No
Cable Management Space : 0.91" / 23 mm
Dimensions (W x H x D) : 8.27 x 18.11 x 16.85" / 210 x 460 x 428 mm
Weight : 14.99 lb / 6.8 kg
Warranty Length : Limited 2-Year Warranty
Packaging Info
Package Weight : 18.605 lb
Box Dimensions (LxWxH) : 20.2 x 19.6 x 10.6"
