NZXT H510B (CA-H510B-BR)

Home Case NZXT H510B

Product Specification

Compatibility
Motherboard Support : ATX, Micro-ATX, Mini-ITX
External Drive Bays : None
Internal Drive Bays
3 x 3.5"
3 x 2.5"
Additional Drive Mounting
2 x 2.5" (Bottom)
2 x 2.5" (Motherboard Tray)
Expansion Slots : 7 x Full Height
Maximum GPU Length : 15.00" / 381 mm
CPU Cooler Height : 6.50" / 165 mm
Supported PSU Size : ATX
Cooling
Fan Mounting (Front)
2 x 120 mm
Or
2 x 140 mm
Fan Mounting (Rear)
1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Side) : None
Fan Mounting (Top)
1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Bottom) : None
Fans Included (Rear) : 1 x 120 mm (1200 Variable rpm)
Fans Included (Top) : 1 x 120 mm (1200 Variable rpm)
Maximum Radiator Size (Front) : 280 mm
Maximum Radiator Size (Rear) : 120 mm
Fan Mounting (Internal) : None
Noise Level : 28 dBA
Fan Controller Included : No
Filter Locations : Bottom, Front
I/O
Connections
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2)
1 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
Audio Connections : 1 x 3.5 mm Input/Output
Display Connections : None
Physical
Windowed Panel : Yes
Material : Tempered Glass, Steel
Built-In Lighting : No
Cable Management Space : 0.91" / 23 mm
Dimensions (W x H x D) : 8.27 x 18.11 x 16.85" / 210 x 460 x 428 mm
Weight : 14.55 lb / 6.6 kg
Warranty Length : Limited 2-Year Warranty
Packaging Info
Package Weight : 17.64 lb
Box Dimensions (LxWxH) : 20 x 19.7 x 10.9"

NZXT H510 Compact ATX Mid-Tower PC Gaming Case - Front I/O USB Type-C Port - Tempered Glass Side Panel - Cable Management System - Water-Cooling Ready

  (29920 Total Review)
 Hot Selling

Product Features

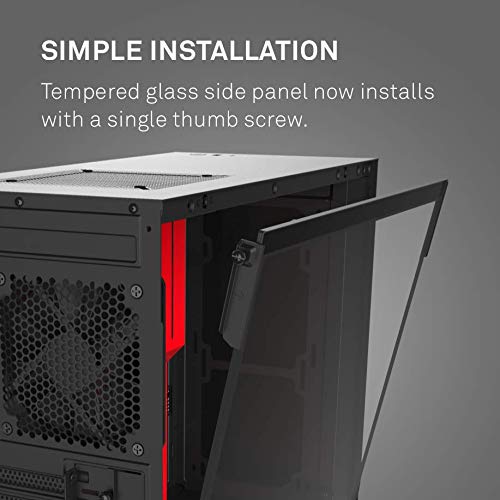

  • New features: Front I/O USB Type-C Port and Tempered glass side panel with single screw installation
  • Enhanced cable management: Our patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive
  • STREAMLINED COOLING: Two Aer F120mm fans included for optimal internal airflow and the front panel and PSU intakes include removable filters, removable bracket designed for radiators up to 240mm - simplifies the installation of either closed-loop or custom-loop water cooling
  • Motherboard support: Mini-ITX, MicroATX, and ATX
* PC Builder™ is a participant of the Amazon Associates Program, through which we earn advertising commission on qualified sales by linking to the Amazon products.
$59.99

Product Specification

Compatibility
Motherboard Support : ATX, Micro-ATX, Mini-ITX
External Drive Bays : None
Internal Drive Bays
3 x 3.5"
3 x 2.5"
Additional Drive Mounting
2 x 2.5" (Bottom)
2 x 2.5" (Motherboard Tray)
Expansion Slots : 7 x Full Height
Maximum GPU Length : 15.00" / 381 mm
CPU Cooler Height : 6.50" / 165 mm
Supported PSU Size : ATX
Cooling
Fan Mounting (Front)
2 x 120 mm
Or
2 x 140 mm
Fan Mounting (Rear)
1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Side) : None
Fan Mounting (Top)
1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Bottom) : None
Fans Included (Rear) : 1 x 120 mm (1200 Variable rpm)
Fans Included (Top) : 1 x 120 mm (1200 Variable rpm)
Maximum Radiator Size (Front) : 280 mm
Maximum Radiator Size (Rear) : 120 mm
Fan Mounting (Internal) : None
Noise Level : 28 dBA
Fan Controller Included : No
Filter Locations : Bottom, Front
I/O
Connections
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2)
1 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
Audio Connections : 1 x 3.5 mm Input/Output
Display Connections : None
Physical
Windowed Panel : Yes
Material : Tempered Glass, Steel
Built-In Lighting : No
Cable Management Space : 0.91" / 23 mm
Dimensions (W x H x D) : 8.27 x 18.11 x 16.85" / 210 x 460 x 428 mm
Weight : 14.55 lb / 6.6 kg
Warranty Length : Limited 2-Year Warranty
Packaging Info
Package Weight : 17.64 lb
Box Dimensions (LxWxH) : 20 x 19.7 x 10.9"
