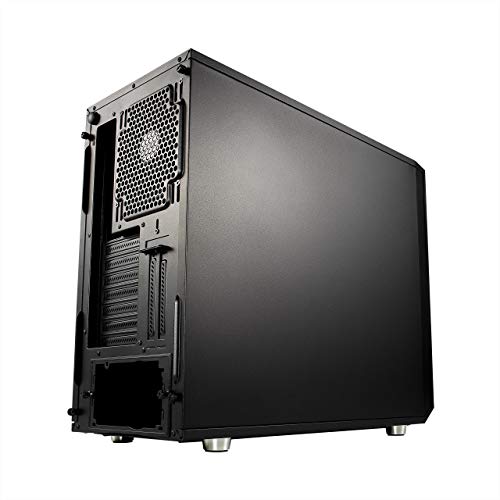

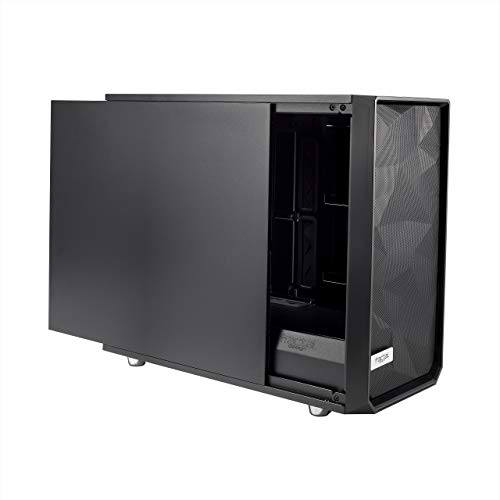

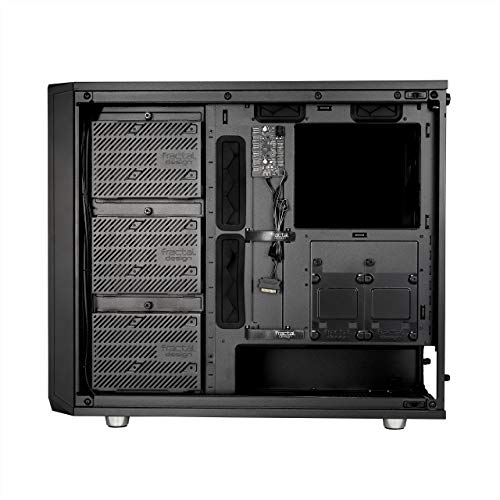

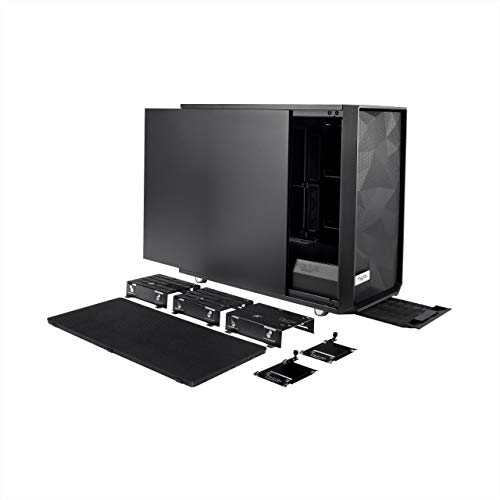

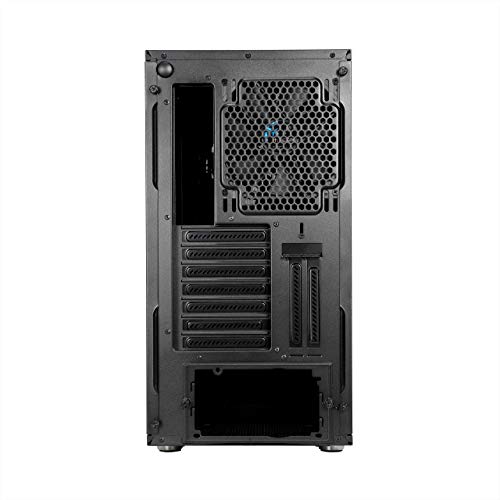

Fractal Design Meshify S2 (FD-CA-MESH-S2-BKO)

Home Case Fractal Design Meshify S2

Product Specification

Compatibility
Motherboard Support : ATX, E-ATX, Micro-ATX, Mini-ITX
External Drive Bays : None
Internal Drive Bays
3 x 2.5/3.5"
2 x 2.5"
Expansion Slots : 7 x Full Height + 2
Maximum GPU Length : 17.32" / 440 mm
CPU Cooler Height : 7.28" / 185 mm
Supported PSU Size : ATX
Maximum PSU Length : 11.81" / 300 mm
Cooling
Fan Mounting (Front)
3 x 120 mm
Or
3 x 140 mm
Fan Mounting (Rear)
1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Side) : None
Fan Mounting (Top)
3 x 120 mm
Or
3 x 140 mm
Fan Mounting (Bottom)
2 x 120 mm
Or
2 x 140 mm
Fans Included (Front) : 2 x 140 mm
Fans Included (Rear) : 1 x 140 mm
Fans Included (Side) : None
Fans Included (Top) : None
Fans Included (Bottom) : None
Maximum Radiator Size (Front) : 360 mm
Maximum Radiator Size (Rear) : 120 mm
Maximum Radiator Size (Top) : 420 mm
Maximum Radiator Size (Bottom) : 280 mm
Fan Mounting (Internal) : None
Fans Included (Internal) : None
Filter Locations : Bottom, Front, Top
I/O
Connections
2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2)
Media Card Slots : None
Audio Connections
1 x 3.5 mm Input
1 x 3.5 mm Output
Display Connections : None
Physical
Windowed Panel : No
Material : Steel
Built-In Lighting : No
Cable Management Space : 0.91" / 23 mm
Dimensions (W x H x D) : 9.17 x 18.31 x 21.18" / 233 x 465 x 538 mm
Weight : 20.99 lb / 9.52 kg
Warranty Length : Limited 2-Year Warranty
Packaging Info
Package Weight : 24.55 lb
Box Dimensions (LxWxH) : 25.8 x 21 x 13"

Fractal Design Meshify S2 - Mid Tower Computer Case - Airflow/Performance - 3X Silent Fans and Nexus Smart Hub Included

  (303 Total Review)
 Hot Selling

Product Features

  • True modularity: high-airflow open layout design
  • Distinctive design: Stealth inspired angular mesh ventilation with Type-C connector (USB 3. 1 Gen 2)
  • Easy to clean-filters included: front, top, and base Filters with full PSU coverage and convenient front access
  • Water-cooling Ready: built for Advanced liquid cooling with adjustable reservoir brackets, pre-drilled pump mounts, and an innovative removable top bracket with dedicated fill port
  • Three dynamic x2 fans pre-installed as dual intakes and rear exhaust for balanced airflow: including nine fan Positions and Nexus+ Smart hub allows motherboard control of up to three PWM devices and six case fans
  • Concelead cable management and storage support: Full-length ventilated PSU shroud with removable front cover and alternate SSD mounts as well as concealed drive mounts for two SSDs and three HDDs with vibration dampened enclosures
