Product Specification

Compatibility

Motherboard Support : ATX, E-ATX, Micro-ATX, Mini-ITX

External Drive Bays : 2 x 5.25"

Internal Drive Bays

2 x 2.5/3.5"

2 x 2.5"

Expansion Slots : 7 x Full Height

Maximum GPU Length : 16.22" / 412 mm

CPU Cooler Height : 7.48" / 190 mm

Supported PSU Size : ATX

Cooling

Fan Mounting (Front)

3 x 120 mm

3 x 140 mm

Fan Mounting (Rear)

1 x 140 mm

1 x 120 mm

Fan Mounting (Side) : None

Fan Mounting (Top)

2 x 120 mm

Fan Mounting (Bottom) : None

Fans Included (Front) : 1 x 140 mm (1200 rpm)

Fans Included (Rear) : 1 x 140 mm (1200 rpm)

Maximum Radiator Size (Front) : 360 mm

Maximum Radiator Size (Rear) : 140 mm

Maximum Radiator Size (Top) : 240 mm

Fan Controller Included : No

Filter Locations : Bottom, Front, Top

I/O

Connections

2 x USB Type-A (USB 2.0)

2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)

Audio Connections

1 x 3.5 mm Input

1 x 3.5 mm Output

Display Connections : None

Physical

Windowed Panel : Yes

Material : Tempered Glass, Steel, Plastic

Built-In Lighting : No

Cable Management Space : 1.38" / 35 mm

Dimensions (W x H x D) : 9.25 x 21.57 x 20.16" / 235 x 548 x 512 mm

Weight : 24.91 lb / 11.3 kg

Packaging Info

Package Weight : 30.2 lb

Box Dimensions (LxWxH) : 25.25 x 23.5 x 12.75"

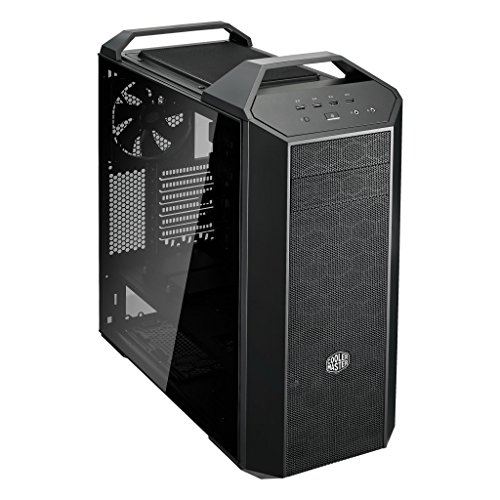

Cooler Master MasterCase MC500 Mid-Tower ATX Case w/Freeform Modular, Front Mesh Ventilation, Tempered Glass Side Panel

(292 Total Review)

Product Features

Freeform modular system – easily customize, adjust, and upgrade your case, inside and out, removable partition panel isolates power supply and cables for clean management
Drop-proof side panels - unique bracket holds the side panels from falling down while installing or removing, clip and click drive cage adjustment, clip and clip SDD cage
Clear view inside – an edge-to-edge light grey tinted tempered glass Side panel gives a wide view inside your PC to showcase your masterpiece
Flexible dual chamber design – removable partition panel isolates power supply and cables for clean management
Radiator support- front supports up to 360mm radiator, top supports up to 240mm radiator, rear supports up to 140mm radiator
